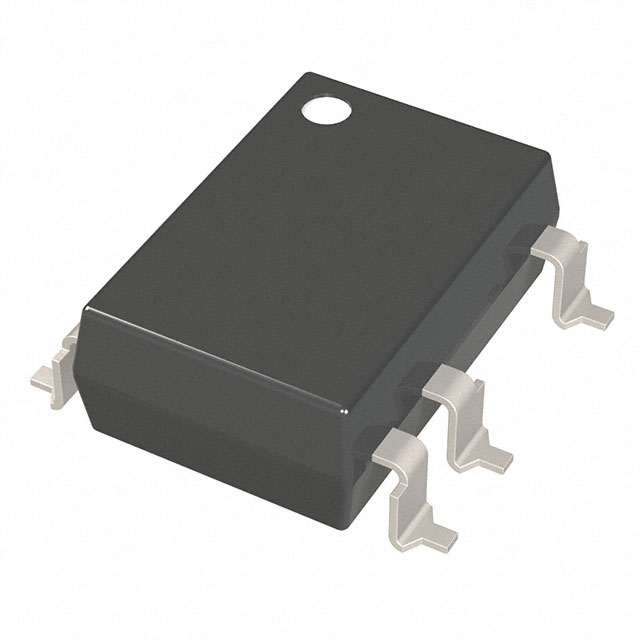

QTT0223ST1

Active

QT Brightek (QTB)

OPTOISO 5KV PWR TRIAC 1CH 7-SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

OPTOISO 5KV PWR TRIAC 1CH 7-SMD

Technical Specifications

Parameters and characteristics for this part

Specification	QTT0223ST1

Approval Agency	UL, VDE
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	25 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	300 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	8-SMD (7 Leads), Gull Wing
Static dV/dt (Min) [Min]	200 V/µs
Supplier Device Package	7-SMD
Voltage - Forward (Vf) (Typ)	1.3 V
Voltage - Off State	600 V
Zero Crossing Circuit	False

OPTOISO 5KV PWR TRIAC 1CH 7-SMD

Part	Number of Channels	Mounting Type	Static dV/dt (Min) [Min]	Current - LED Trigger (Ift) (Max) [Max]	Zero Crossing Circuit	Current - On State (It (RMS)) (Max)	Current - Hold (Ih)	Approval Agency	Current - DC Forward (If) (Max)	Package / Case	Voltage - Off State	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Forward (Vf) (Typ)
QT Brightek (QTB) QTT0223ST1	1	Surface Mount	200 V/µs	10 mA		300 mA	25 mA	UL, VDE	50 mA	8-SMD (7 Leads), Gull Wing	600 V	85 °C	-55 °C	7-SMD	1.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac, Power Output 5000Vrms 1 Channel 7-SMD
