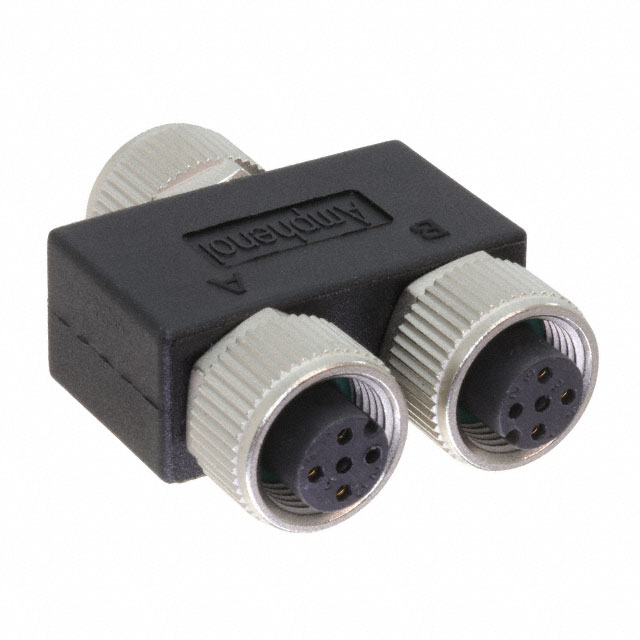

YA-A03F-A03F-A03F-01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 03 PINS, (END 1) FEMALE FEMALE, (END 2) FEMALE FEMALE, (END 3) FEMALE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YA-A03F-A03F-A03F-01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, Y ADAPTOR, METAL, A CODING, 4A, 03 PINS, (END 1) FEMALE FEMALE, (END 2) FEMALE FEMALE, (END 3) FEMALE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.36
		10	$ 10.06
		25	$ 9.68
		50	$ 9.29
		100	$ 9.09
Newark	Each	10	$ 15.73
		25	$ 14.44
		50	$ 12.89
		100	$ 11.86
		250	$ 11.52

Description

General part information

YAA Series

Circular Connector Distributor Y-Shaped 3/3 (2) Female Sockets/Female Sockets (2) Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Specification	YA-A03F-A03F-A03F-01	YAA Series

Connector Style	Distributor Y-Shaped	Distributor Y-Shaped
Convert From (Adapter End)	Female Sockets	Male Pins, Female Sockets
Convert To (Adapter End)	Female Sockets (2)	Female Sockets (1), Male Pins (1), Female Sockets (2), Male Pins (2)
Current Rating (Amps)	-	4 A
Features	Coupling Nut	Coupling Nut
Housing Color	-	Black
Housing Material	Thermoplastic	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions (Convert From)	3	3 - 12
Number of Positions (Convert To)	3	3 - 12
Number of Positions (Convert To)	2	2
Number of Positions (Convert To)	-	2
Number of Positions (Convert To)	-	10
Operating Temperature	-	85 °C
Operating Temperature	-	-20 C
Orientation (Convert From)	A	A
Orientation (Convert To)	A	A
Primary Material	-	Plastic
Shell Size - Insert (Convert From)	M12	M12
Shell Size - Insert (Convert To) [custom]	M12	M12
Shielding	Unshielded	Unshielded
Voltage Rating	-	250 VDC

Part

Orientation (Convert To)

Orientation (Convert From)

Shell Size - Insert (Convert From)

Convert From (Adapter End)

Shell Size - Insert (Convert To) [custom]

Shielding

Number of Positions (Convert From)

Number of Positions (Convert To)

Connector Style

Ingress Protection

Convert To (Adapter End)

Mounting Type

Housing Material

Features

Number of Positions (Convert To) [custom]

Primary Material

Current Rating (Amps)

Voltage Rating

Housing Color

Operating Temperature [Max]

Operating Temperature [Min]

Amphenol LTW

YA-A08M-A08M-A08F-01

M12

Male Pins

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Female Sockets (1), Male Pins (1)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Amphenol LTW

YA-A03M-A03M-A03F-01

M12

Male Pins

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Female Sockets (1), Male Pins (1)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Amphenol LTW

YA-A05M-A05M-A05F-01

M12

Male Pins

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Female Sockets (1), Male Pins (1)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Amphenol LTW

YA-A03M-A03F-A03F-01

M12

Male Pins

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Female Sockets (2)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Amphenol LTW

YA-A03F-A03F-A03F-01

M12

Female Sockets

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Female Sockets (2)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Amphenol LTW

YA-A12F-A12F-A12F-01

M12

Female Sockets

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Female Sockets (2)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Amphenol LTW

YA-A12M-A12M-A12M-01

M12

Male Pins

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Male Pins (2)

Free Hanging (In-Line)

Thermoplastic

Amphenol LTW

YA-A06F-A06M-A06M-01

M12

Female Sockets

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Male Pins (2)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Amphenol LTW

YA-A08M-A08F-A08F-01

M12

Male Pins

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Female Sockets (2)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Amphenol LTW

YA-A03F-A03M-A03M-01

M12

Female Sockets

M12

Unshielded

Distributor Y-Shaped

IP68 - Dust Tight, Waterproof

Male Pins (2)

Free Hanging (In-Line)

Thermoplastic

Coupling Nut

Part	Orientation (Convert To)	Orientation (Convert From)	Shell Size - Insert (Convert From)	Convert From (Adapter End)	Shell Size - Insert (Convert To) [custom]	Shielding	Number of Positions (Convert From)	Number of Positions (Convert To)	Number of Positions (Convert To)	Connector Style	Ingress Protection	Convert To (Adapter End)	Mounting Type	Housing Material	Features
Amphenol LTW YA-A08M-A08M-A08F-01	A	A	M12	Male Pins	M12	Unshielded	8	8	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Female Sockets (1), Male Pins (1)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
Amphenol LTW YA-A03M-A03M-A03F-01	A	A	M12	Male Pins	M12	Unshielded	3	3	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Female Sockets (1), Male Pins (1)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
Amphenol LTW YA-A05M-A05M-A05F-01	A	A	M12	Male Pins	M12	Unshielded	5	5	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Female Sockets (1), Male Pins (1)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
Amphenol LTW YA-A03M-A03F-A03F-01	A	A	M12	Male Pins	M12	Unshielded	3	3	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Female Sockets (2)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
Amphenol LTW YA-A03F-A03F-A03F-01	A	A	M12	Female Sockets	M12	Unshielded	3	3	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Female Sockets (2)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
Amphenol LTW YA-A12F-A12F-A12F-01	A	A	M12	Female Sockets	M12	Unshielded	12	12	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Female Sockets (2)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
Amphenol LTW YA-A12M-A12M-A12M-01	A	A	M12	Male Pins	M12	Unshielded	12	12	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Male Pins (2)	Free Hanging (In-Line)	Thermoplastic
Amphenol LTW YA-A06F-A06M-A06M-01	A	A	M12	Female Sockets	M12	Unshielded	6	6	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Male Pins (2)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
Amphenol LTW YA-A08M-A08F-A08F-01	A	A	M12	Male Pins	M12	Unshielded	8	8	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Female Sockets (2)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
Amphenol LTW YA-A03F-A03M-A03M-01	A	A	M12	Female Sockets	M12	Unshielded	3	3	2	Distributor Y-Shaped	IP68 - Dust Tight, Waterproof	Male Pins (2)	Free Hanging (In-Line)	Thermoplastic	Coupling Nut
