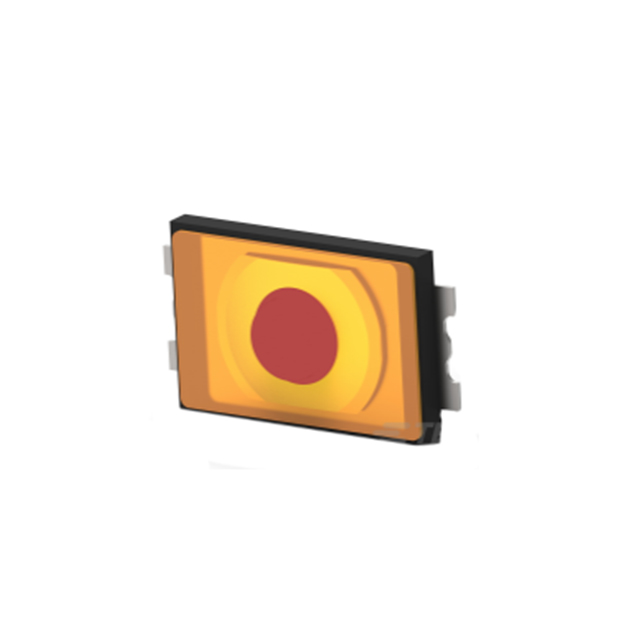

USLPT2616CT2TR

Active

TE Connectivity ALCOSWITCH Switches

SWITCH TACTILE SPST-NO 0.02A 15V

Search across all available documentation for this part.

Active

TE Connectivity ALCOSWITCH Switches

SWITCH TACTILE SPST-NO 0.02A 15V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	USLPT2616CT2TR	USLPT Series

Actuator Height off PCB, Vertical	-	0.45 - 0.6 mm
Actuator Height off PCB, Vertical [z]	0.55 mm	0.55 - 0.65 mm
Actuator Material	Nylon, Polyamide (PA)	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard, Flush
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage [x]	0.02 A, 15 VDC	0.02 - 15 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	200000 Cycles	100000 - 300000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	-	100 - 240 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	2.6 mm	2.6 - 3 mm
Outline [y]	1.6 mm	1.6 - 2.6 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	-	0.13 - 0.15 mm
Switch Travel [custom]	0.1 mm	0.1 mm
Termination Style	SMD (SMT) Tab	SMD (SMT) Tab, J Lead

SWITCH TACTILE SPST-NO 0.02A 15V

Part	Contact Rating @ Voltage [x]	Outline [x]	Outline [y]	Actuator Material	Actuator Height off PCB, Vertical [z]	Switch Function	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mechanical Life	Actuator Type	Termination Style	Switch Travel [custom]	Actuator Orientation	Illumination	Operating Force	Switch Travel	Actuator Height off PCB, Vertical
TE Connectivity ALCOSWITCH Switches USLPT2616CT2TR	0.02 A, 15 VDC	2.6 mm	1.6 mm	Nylon, Polyamide (PA)	0.55 mm	Off-Mom	Surface Mount	85 °C	-40 °C	SPST-NO	200000 Cycles	Standard	SMD (SMT) Tab	0.1 mm	Top Actuated	Non-Illuminated
TE Connectivity ALCOSWITCH Switches USLPT3026EL1TR	0.02 A, 15 VDC	3 mm	2.6 mm	Nylon, Polyamide (PA)	0.65 mm	Off-Mom	Surface Mount	85 °C	-40 °C	SPST-NO	100000 Cycles	Standard	J Lead		Top Actuated	Non-Illuminated	100 gf	0.15 mm
TE Connectivity ALCOSWITCH Switches USLPT3020DT2TR	0.02 A, 15 VDC	3 mm	2 mm	Nylon, Polyamide (PA)		Off-Mom	Surface Mount	85 °C	-40 °C	SPST-NO	300000 Cycles	Standard	SMD (SMT) Tab		Top Actuated	Non-Illuminated		0.13 mm	0.6 mm
TE Connectivity ALCOSWITCH Switches USLPT3026BL1TR	0.02 A, 15 VDC	3 mm	2.6 mm	Nylon, Polyamide (PA)		Off-Mom	Surface Mount	85 °C	-40 °C	SPST-NO	100000 Cycles	Flush	J Lead		Top Actuated	Non-Illuminated	100 gf	0.15 mm	0.45 mm
TE Connectivity ALCOSWITCH Switches USLPT3020DT6TR	0.02 A, 15 VDC	3 mm	2 mm	Nylon, Polyamide (PA)		Off-Mom	Surface Mount	85 °C	-40 °C	SPST-NO	300000 Cycles	Standard	SMD (SMT) Tab		Top Actuated	Non-Illuminated	240 gf	0.13 mm	0.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
