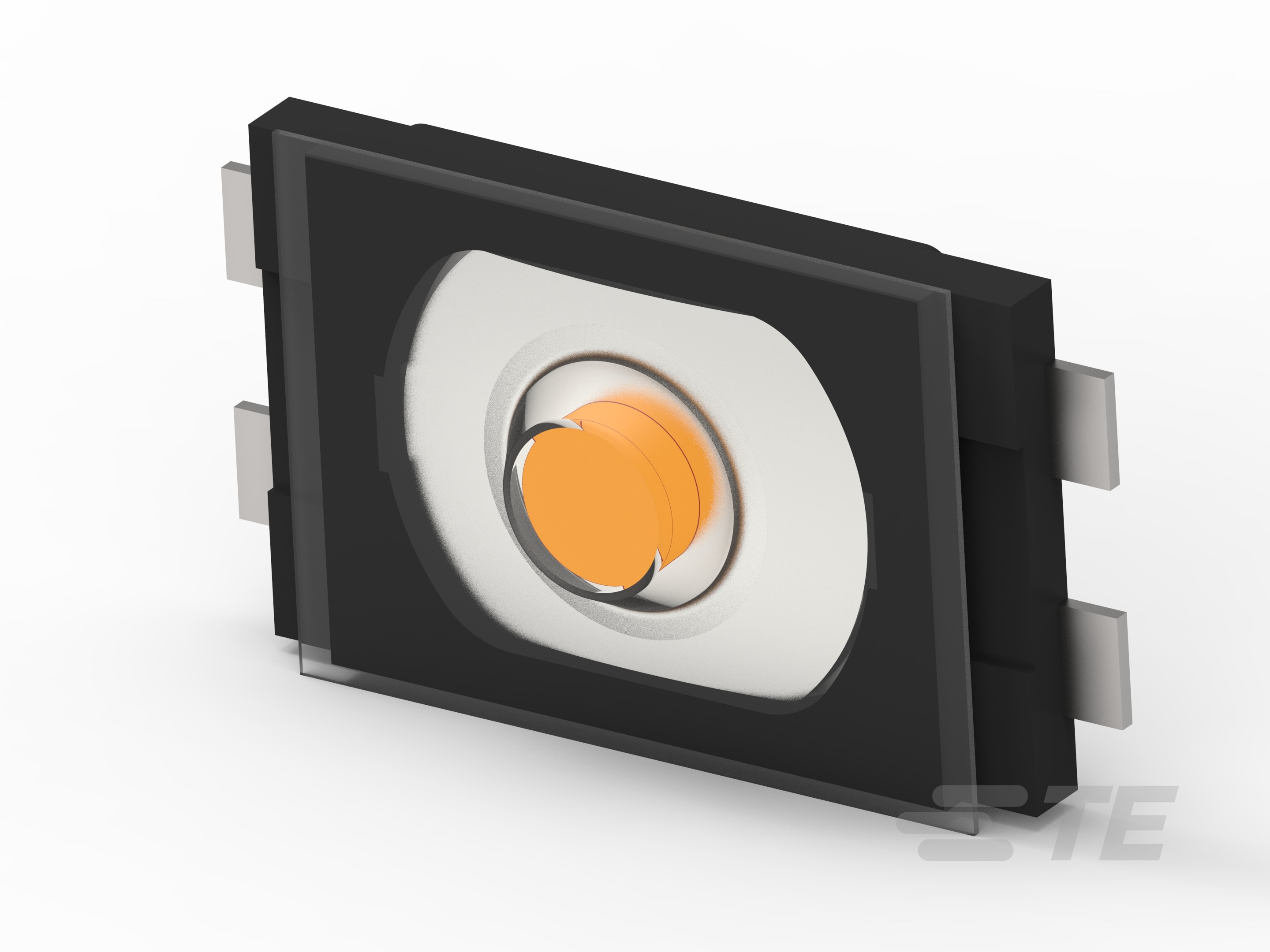

USLPT2616CT2TR
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.02A 15V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
USLPT2616CT2TR
ActiveTE Connectivity Raychem Cable Protection
SWITCH TACTILE SPST-NO 0.02A 15V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | USLPT2616CT2TR |
|---|---|
| Actuator Height off PCB, Vertical [z] | 0.55 mm |
| Actuator Material | Nylon, Polyamide (PA) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage [x] | 0.02 A, 15 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 2.6 mm |
| Outline [y] | 1.6 mm |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.1 mm |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.97 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.73 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.59 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.52 | |||
| Digi-Reel® | 1 | $ 0.97 | ||
| 10 | $ 0.79 | |||
| 25 | $ 0.73 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.59 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.52 | |||
| Tape & Reel (TR) | 2500 | $ 0.47 | ||
| 5000 | $ 0.44 | |||
| 7500 | $ 0.42 | |||
| 12500 | $ 0.40 | |||
| 17500 | $ 0.39 | |||
| 25000 | $ 0.38 | |||
Description
General part information
USLPT Series
Tactile Switch SPST-NO Top Actuated Surface Mount
