794682-8
ObsoleteTE Connectivity AMP Connectors

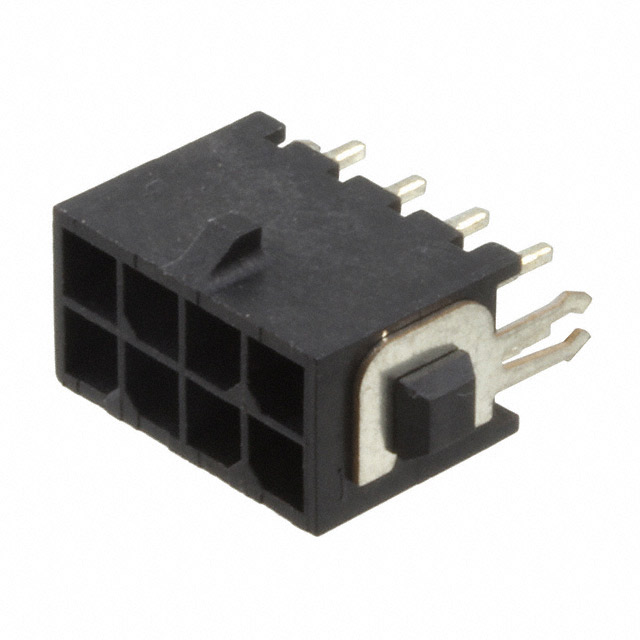

CONN HEADER VERT 8POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794682-8
ObsoleteTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794682-8 | 794682 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 9.25 mm | 9.25 mm |
| Insulation Height | 0.364 in | 0.364 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 2 - 24 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage Rating | 250 VDC | 250 VDC |
794682 Series
CONN HEADER VERT 10POS 3MM
| Part | Voltage Rating | Termination | Applications | Contact Shape | Insulation Color | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Pitch - Mating | Pitch - Mating | Current Rating (Amps) | Contact Type | Style | Number of Positions Loaded | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Insulation Material | Contact Material | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating | Number of Positions | Mounting Type | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Rows | Shrouding | Contact Finish - Post | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-794682-0 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 10 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | |
TE Connectivity AMP Connectors 794682-4 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 4 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin-Lead | |
TE Connectivity AMP Connectors 1-794682-6 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin-Lead | 16 | |
TE Connectivity AMP Connectors 4-794682-2 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 12 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | |
TE Connectivity AMP Connectors 3-794682-6 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 6 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | |
TE Connectivity AMP Connectors 1-794682-0 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 10 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin-Lead | |
TE Connectivity AMP Connectors 794682-8 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 8 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin-Lead | |
TE Connectivity AMP Connectors 3-794682-8 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 8 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | |
TE Connectivity AMP Connectors 3-794682-4 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | 0.118 in | 3 mm | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 4 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin | |
TE Connectivity AMP Connectors 3-794682-2 | 250 VDC | Solder | General Purpose | Square | Black | Gold | 3 mm | 0.118 in | Varies by Wire Gauge | Male Pin | Board to Cable/Wire | All | 9.25 mm | 0.364 in | -40 °C | 105 ░C | Header | Nylon, Polyamide (PA) | Brass | 3.18 mm | 0.125 in | UL94 V-0 | 2 | Through Hole | Locking Ramp | 30 Áin | 0.76 Ám | 2.54 µm | 100 µin | 2 | Shrouded - 4 Wall | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
794682 Series
Connector Header Through Hole 8 position 0.118" (3.00mm)
