3-794682-4

Active

TE Connectivity AMP Connectors

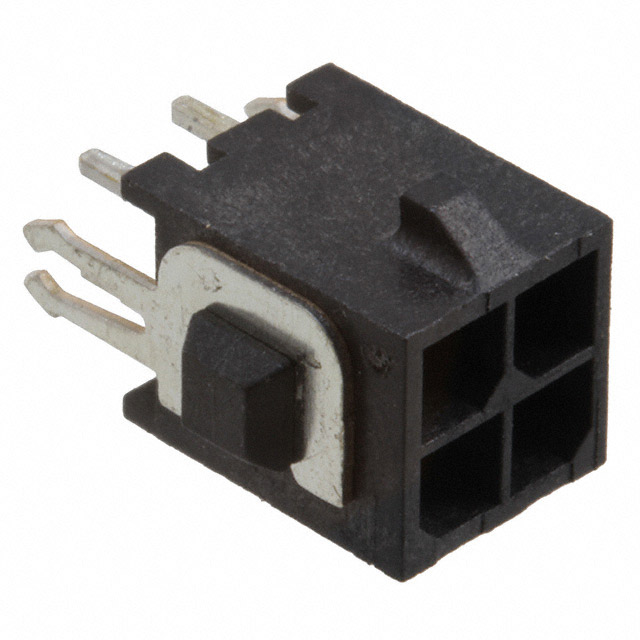

CONN HEADER VERT 4POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

3-794682-4

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 3MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3-794682-4	794682 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794682 Series

CONN HEADER VERT 10POS 3MM

Part	Voltage Rating	Termination	Applications	Contact Shape	Insulation Color	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Type	Style	Number of Positions Loaded	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Material	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Number of Positions	Mounting Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Shrouding	Contact Finish - Post	Number of Positions
TE Connectivity AMP Connectors 4-794682-0	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	10	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin
TE Connectivity AMP Connectors 794682-4	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	4	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin-Lead
TE Connectivity AMP Connectors 1-794682-6	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0		Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin-Lead	16
TE Connectivity AMP Connectors 4-794682-2	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	12	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin
TE Connectivity AMP Connectors 3-794682-6	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	6	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin
TE Connectivity AMP Connectors 1-794682-0	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	10	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin-Lead
TE Connectivity AMP Connectors 794682-8	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	8	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin-Lead
TE Connectivity AMP Connectors 3-794682-8	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	8	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin
TE Connectivity AMP Connectors 3-794682-4	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in	0.118 in	3 mm	Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	4	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin
TE Connectivity AMP Connectors 3-794682-2	250 VDC	Solder	General Purpose	Square	Black	Gold	3 mm	0.118 in			Varies by Wire Gauge	Male Pin	Board to Cable/Wire	All	9.25 mm	0.364 in	-40 °C	105 ░C	Header	Nylon, Polyamide (PA)	Brass	3.18 mm	0.125 in	UL94 V-0	2	Through Hole	Locking Ramp	30 Áin	0.76 Ám	2.54 µm	100 µin	2	Shrouded - 4 Wall	Tin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.98
		10	$ 1.81
		377	$ 1.59
		754	$ 1.45
		1131	$ 1.30
		4901	$ 1.20

Description

General part information

794682 Series

Connector Header Through Hole 4 position 0.118" (3.00mm)

Documents

Technical documentation and resources

No documents available
