VL53L0CXV0DH/1
ActivePROXIMITY SENSORS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
VL53L0CXV0DH/1
ActivePROXIMITY SENSORS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VL53L0CXV0DH/1 | VL53L0X Series |
|---|---|---|
| - | - | |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Output Type | I2C | I2C |
| Sensing Distance | 2 m | 2 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
VL53L0X Series
Time-of-Flight (ToF) ranging sensor
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Sensing Distance | Output Type |
|---|---|---|---|---|
STMicroelectronics VL53L0CXV0DH/1 | ||||
STMicroelectronics VL53L0CXV0DH/1 | ||||
STMicroelectronics VL53L0CXV0DH/1 | -20 C | 70 °C | 2 m | I2C |
Description
General part information
VL53L0X Series

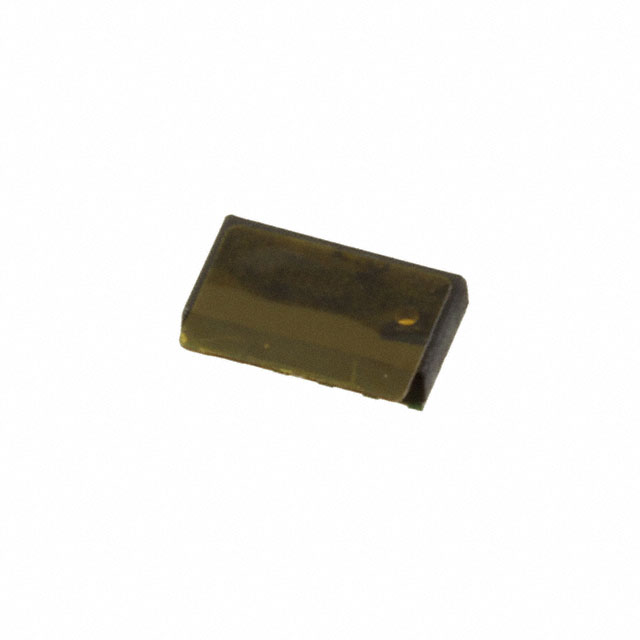

The VL53L0X is a Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2 m, setting a new benchmark in ranging performance levels, opening the door to various new applications.
The VL53L0X integrates a leading-edge SPAD array (single photon avalanche diodes) and embeds ST’s second generation FlightSense patented technology.
The VL53L0X’s 940 nm VCSEL emitter (vertical cavity surface-emitting laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.
