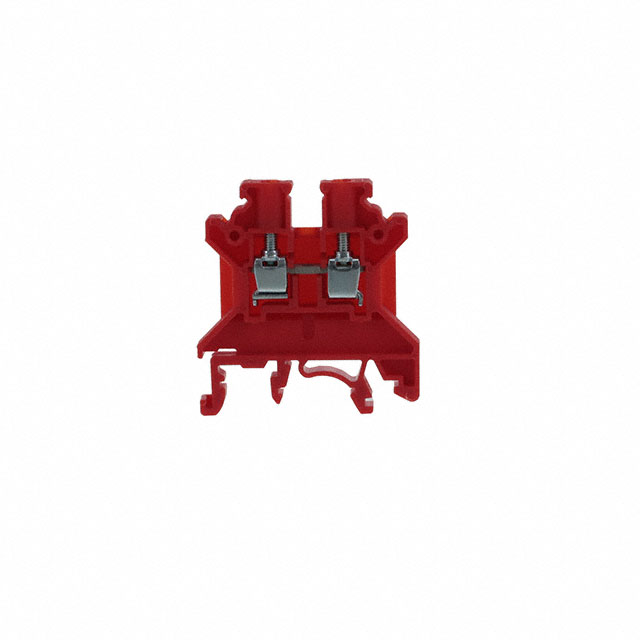

CTS4U-N/R

Active

TE Connectivity Raychem Cable Protection

TERMINAL BLOCK, 6MM, 35A, RED, 6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CTS4U-N/R

Active

TE Connectivity Raychem Cable Protection

TERMINAL BLOCK, 6MM, 35A, RED, 6

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CTS4U-N/R

Color	Red
Current - IEC	32 A
Current - UL	35 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length	8 mm
Terminal - Width [y]	6 mm
Termination Style	Screw
Type	Feed Through
Voltage - IEC	1 kV
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

CTS4 Series

Part	Number of Positions	Terminal - Width [y]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Color	Voltage - UL	Material - Insulation	Type	Current - IEC	Current - UL	Voltage - IEC	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Stripping Length
TE Connectivity Raychem Cable Protection CTS4U-N/W	2	6 mm	22 AWG	10 AWG	1	0.2 mm²	4 mm²	Screw	White	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV	0.2 mm˛	4 mm˛	8 mm
Altech Corporation CTS4U-N/W	2	6 mm	22 AWG	10 AWG	1	0.2 mm²	4 mm²	Screw	White	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV	0.2 mm˛	4 mm˛	8 mm
TE Connectivity Raychem Cable Protection CTS4U-N/BL	2	6 mm	22 AWG	10 AWG	1			Screw	Black	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV	0.2 mm˛	4 mm˛	8 mm
Altech Corporation CTS4U-N/BL	2	6 mm	22 AWG	10 AWG	1			Screw	Black	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV	0.2 mm˛	4 mm˛	8 mm
TE Connectivity Raychem Cable Protection CTS4U-N	2	6 mm	22 AWG	10 AWG	1			Screw	Gray	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV	0.2 mm˛	4 mm˛	8 mm
Altech Corporation CTS4U-N	2	6 mm	22 AWG	10 AWG	1			Screw	Gray	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV	0.2 mm˛	4 mm˛	8 mm
TE Connectivity Raychem Cable Protection CTS4U-N/R	2	6 mm	22 AWG	10 AWG	1	0.2 mm²	4 mm²	Screw	Red	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV			8 mm
Altech Corporation CTS4U-N/R	2	6 mm	22 AWG	10 AWG	1	0.2 mm²	4 mm²	Screw	Red	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV			8 mm
TE Connectivity Raychem Cable Protection CTS4U-N/R	2	6 mm	22 AWG	10 AWG	1			Screw	Red	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV	0.2 mm˛	4 mm˛	8 mm
Altech Corporation CTS4U-N/R	2	6 mm	22 AWG	10 AWG	1			Screw	Red	600 V	Polyamide (PA66) Nylon 6/6	Feed Through	32 A	35 A	1 kV	0.2 mm˛	4 mm˛	8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.07
		1	$ 1.07
	Bulk	1	$ 1.88
		1	$ 1.88
		10	$ 1.32
		10	$ 1.32
		25	$ 1.23
		25	$ 1.23
		50	$ 1.12
		50	$ 1.12
		100	$ 1.11
		100	$ 1.11
		300	$ 0.94
		300	$ 0.94
		500	$ 0.89
		500	$ 0.89
		1000	$ 0.79
		1000	$ 0.79
		5000	$ 0.64
		5000	$ 0.64

Description

General part information

CTS4 Series

Terminal Block Connector 2 Position Feed Through Red 10-22 AWG
