1075 SL005

Active

ALPHA WIRE

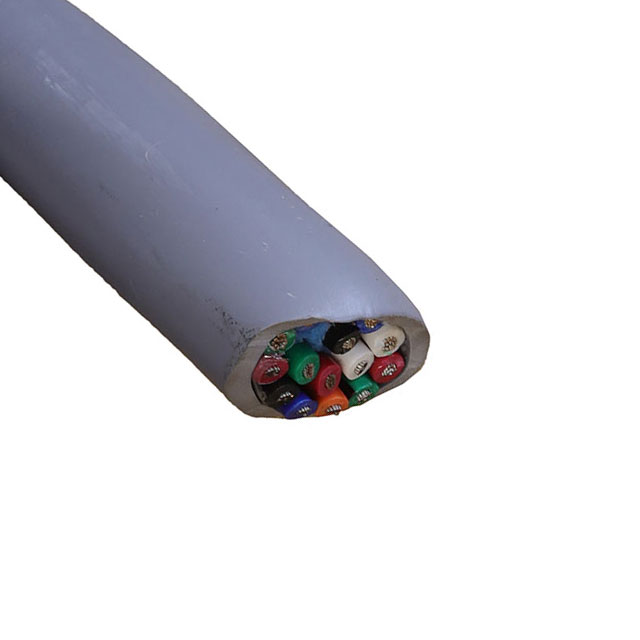

CABLE 15COND 16AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 15COND 16AWG SLATE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1075 SL005	1075 Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	19	19
Conductor Strand [custom]	0.0117 in	0.0117 in
Jacket (Insulation) Diameter [diameter]	17.63 mm	17.63 mm
Jacket (Insulation) Diameter [diameter]	0.694 in	0.694 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.6 mm	1.6 mm
Jacket (Insulation) Thickness	0.063 in	0.063 in
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Number of Conductors	15	15
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	600 V	600 V
Wire Gauge	16 AWG	16 AWG

CABLE 15COND 16AWG SLATE

Part	Length	Length	Jacket (Insulation) Material	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Number of Conductors	Conductor Insulation	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 1075 SL001	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	Communication, Control	-20 C	80 C	1.6 mm	0.063 in	16 AWG	Copper, Tinned	17.63 mm	0.694 in	600 V	19	0.0117 in	Multi-Conductor	15	Poly-Vinyl Chloride (PVC)	Slate
ALPHA WIRE 1075 SL005			Poly-Vinyl Chloride (PVC)	Communication, Control	-20 C	80 C	1.6 mm	0.063 in	16 AWG	Copper, Tinned	17.63 mm	0.694 in	600 V	19	0.0117 in	Multi-Conductor	15	Poly-Vinyl Chloride (PVC)	Slate	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 16.41

General part information

15 Conductor Multi-Conductor Cable Slate 16 AWG 100.0' (30.5m)
