EKZE630ELL182MM40S

Active

Chemi-Con

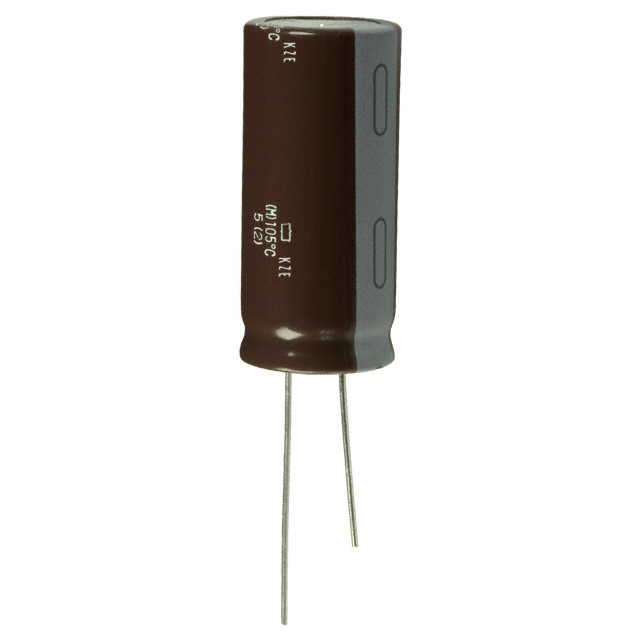

CAP ALUM 1800UF 20% 63V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE630ELL182MM40S

Active

Chemi-Con

CAP ALUM 1800UF 20% 63V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.91
		10	$ 2.24
		50	$ 2.06
		250	$ 1.54
		500	$ 1.37
		1000	$ 1.20
		2500	$ 1.16
		5000	$ 1.11

Description

General part information

EKZE630E Series

1800 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKZE630ELL182MM40S	EKZE630E Series

Applications	General Purpose	General Purpose
Capacitance	1800 µF	15 - 1800 ÁF
Height - Seated (Max)	-	0.492 - 0.846 in
Height - Seated (Max)	-	0.433 - 1.043 in
Height - Seated (Max)	-	11 - 26.5 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max]	1.634 "	1.634 - 21.5 mm
Height - Seated (Max) [Max]	41.5 mm	41.5 mm
Impedance	17 mOhms	17 - 880 mOhms
Lead Spacing	7.5 mm	2 - 7.5 mm
Lead Spacing	0.295 in	0.079 - 0.295 in
Lifetime @ Temp.	5000 Hrs	2000 - 5000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	3.5 A	1.35 - 950 mA
Ripple Current @ Low Frequency	2.1 A	1.68 - 950 mA
Size / Dimension [diameter]	0.709 "	0.197 - 0.709 in
Size / Dimension [diameter]	18 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	63 V	63 V

EKZE630E Series

CAP ALUM 33UF 20% 63V RADIAL TH

Part	Tolerance	Package / Case	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Mounting Type	Ripple Current @ High Frequency	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Chemi-Con EKZE630ETD330MF11D	20 %	Radial, Can	63 V	0.492 in	12.5 mm	General Purpose	Through Hole	265 mA	Polar	0.248 in	6.3 mm	33 ÁF	0.098 in	2.5 mm	2000 Hrs	350 mOhms	-40 °C	105 ░C	106 mA, 120 Hz
Chemi-Con EKZE630ETD221MJ25S	20 %	Radial, Can	63 V			General Purpose	Through Hole	1.35 A	Polar	0.394 in	10 mm	220 µF	0.197 in	5 mm	4000 Hrs	46 mOhms	-40 °C	105 ░C	675 mA	1.043 in	26.5 mm
Chemi-Con EKZE630ETD560MHB5D	20 %	Radial, Can	63 V			General Purpose	Through Hole	500 mA	Polar	0.315 "	8 mm	56 µF	0.138 in	3.5 mm	3000 Hrs	220 mOhms	-40 °C	105 ░C	200 mA	0.512 "	13 mm
Chemi-Con EKZE630EC3221MJ25S	20 %	Radial, Can	63 V			General Purpose	Through Hole	1.35 A	Polar	0.394 in	10 mm	220 µF	0.197 in	5 mm	4000 Hrs	46 mOhms	-40 °C	105 ░C	675 mA	1.043 in	26.5 mm
Chemi-Con EKZE630EC3121MH20D	20 %	Radial, Can	63 V	0.846 in	21.5 mm	General Purpose	Through Hole	820 mA	Polar	0.315 "	8 mm	120 µF	0.138 in	3.5 mm	3000 Hrs	120 mOhms	-40 °C	105 ░C	328 mA
Chemi-Con EKZE630ELL221MJ25S	20 %	Radial, Can	63 V			General Purpose	Through Hole	1.35 A	Polar	0.394 in	10 mm	220 µF	0.197 in	5 mm	4000 Hrs	46 mOhms	-40 °C	105 ░C	675 mA	1.043 in	26.5 mm
Chemi-Con EKZE630EC3681MK40S	20 %	Radial, Can	63 V		1.634 "	General Purpose	Through Hole	2.8 A	Polar	0.492 in	12.5 mm	680 µF	0.197 in	5 mm	5000 Hrs	21 mOhms	-40 °C	105 ░C	1.68 A			41.5 mm
Chemi-Con EKZE630ETE271MK20S	20 %	Radial, Can	63 V	0.846 in	21.5 mm	General Purpose	Through Hole	1.5 A	Polar	0.492 in	12.5 mm	270 µF	0.197 in	5 mm	5000 Hrs	41 mOhms	-40 °C	105 ░C	750 mA
Chemi-Con EKZE630ELL150ME11D	20 %	Radial, Can	63 V	0.492 in	12.5 mm	General Purpose	Through Hole	165 mA	Polar	0.197 "	5 mm	15 µF	0.079 in	2 mm	2000 Hrs	880 mOhms	-40 °C	105 ░C	66 mA
Chemi-Con EKZE630ELL182MM40S	20 %	Radial, Can	63 V		1.634 "	General Purpose	Through Hole	3.5 A	Polar	0.709 "	18 mm	1800 µF	0.295 in	7.5 mm	5000 Hrs	17 mOhms	-40 °C	105 ░C	2.1 A			41.5 mm
