132366-10

Active

Amphenol RF

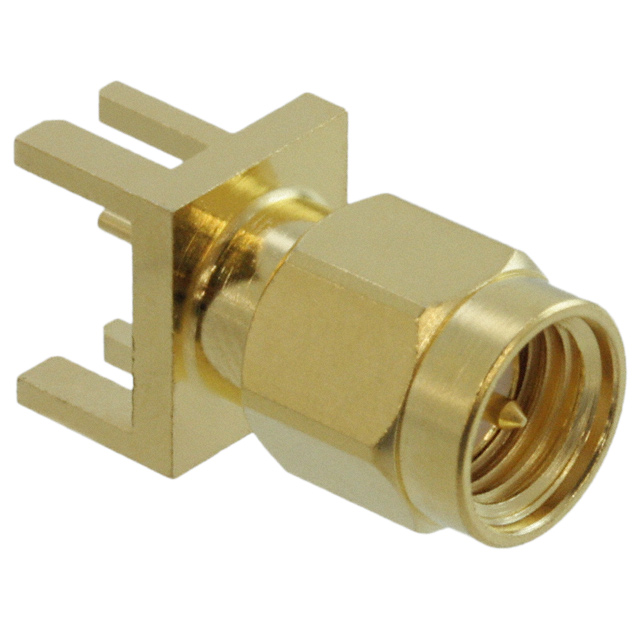

CONN SMA PLUG STR 50OHM EDGE MNT

Search across all available documentation for this part.

Active

Amphenol RF

CONN SMA PLUG STR 50OHM EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	132366-10

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	Weatherproof
Mating Cycles	500
Mounting Type	Board Edge, End Launch
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Contact Termination	Body Material	Mounting Type	Mating Cycles	Housing Color	Connector Style	Body Finish	Dielectric Material	Shield Termination	Ingress Protection	Connector Type	Number of Ports	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Frequency - Max [Max]	Center Contact Plating
Amphenol RF 132366-10	Solder	Brass	Board Edge End Launch	500	Gold	SMA	Gold	Polytetrafluoroethylene (PTFE)	Solder	Weatherproof	Male Pin Plug	1	50 Ohms	-65 ░C	165 °C	Brass	18 GHz	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Plug, Male Pin 50 Ohms Board Edge, End Launch Solder
