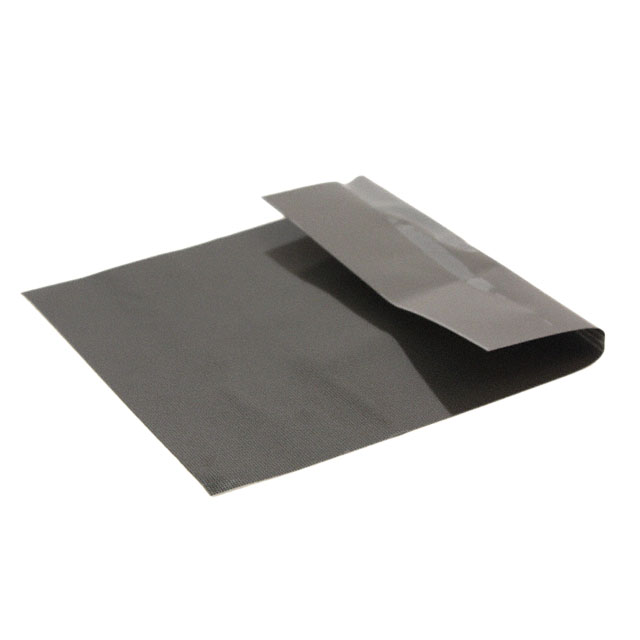

7810 0.20MM

Obsolete

3M (TC)

RF EMI SHLDING SHEET 10"X7.677"

Search across all available documentation for this part.

Obsolete

3M (TC)

RF EMI SHLDING SHEET 10"X7.677"

Technical Specifications

Parameters and characteristics for this part

Specification	7810 0.20MM

Adhesive	Conductive, Single Sided
Length	10 in
Length	254 mm
Material	Nickel-Coated Graphite, Acrylic
Shape	Rectangular
Thickness - Overall	0.008 in
Thickness - Overall	0.22 mm
Type	Shielding Sheet
Width [x]	7.677 in
Width [x]	195 mm

Part	Material	Type	Thickness - Overall	Thickness - Overall	Length	Length	Adhesive	Width [x]	Width [x]	Shape
3M (TC) 7810 0.20MM	Nickel-Coated Graphite Acrylic	Shielding Sheet	0.008 in	0.22 mm	10 in	254 mm	Conductive Single Sided	7.677 in	195 mm	Rectangular
3M (TC) 7810 0.30MM	Nickel-Coated Graphite Acrylic	Shielding Sheet	0.012 in	0.3 mm	10 in	254 mm	Conductive Single Sided	7.677 in	195 mm	Rectangular

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF EMI Shielding Sheet - Nickel-Coated Graphite, Acrylic Conductive, Single Sided 7.677" (195.00mm) X 10.000" (254.00mm) X 0.008" (0.22mm)

Technical documentation and resources

No documents available
