776261-2
ActiveTE Connectivity AMP Connectors

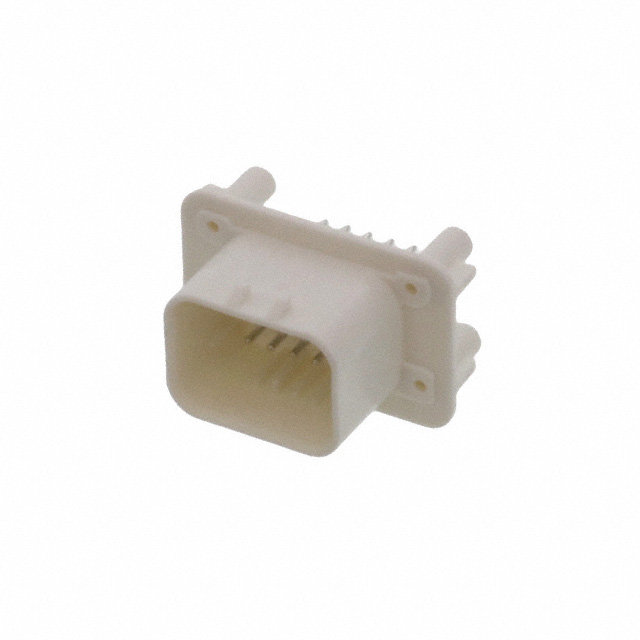

CONN HEADER VERT 14POS 4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
776261-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 14POS 4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 776261-2 | 776261 Series |
|---|---|---|
| Applications | Industrial, Automotive | Industrial, Automotive |
| Clamp Material - Plating | - | Stainless, Steel |
| Color | - | Green |
| Connector Type | Header | Header |
| Contact Finish - Mating | - | Gold-Palladium |
| Contact Material | Brass | Brass |
| Contact Material - Plating | - | Brass - Nickel Tin Plated |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current | - | 10 A |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Features | Sealable, Mounting Flange | Sealable, Mounting Flange |
| Insulation Color | Natural | Natural, Gray, Black |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mating Orientation | - | Horizontal with Board |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Levels | - | 1 |
| Number of Positions | 14 | 14 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Operating Temperature [Max] | 105 ░C | 105 - 125 ░C |
| Operating Temperature [Min] | -40 °C | -55 - -40 °C |
| Pitch | - | 5 mm |
| Pitch | - | 0.197 in |
| Pitch - Mating | 0.157 " | 0.157 " |
| Pitch - Mating | 4 mm | 4 mm |
| Positions Per Level | - | 2 - 5 |
| Row Spacing - Mating | 0.157 in | 0.157 in |
| Row Spacing - Mating | 4 mm | 4 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
| Voltage | - | 300 V |
| Voltage Rating | 250 VAC | 250 VAC |
| Wire Gauge | - | 14 AWG |
| Wire Gauge | - | 22 AWG |
| Wire Termination | - | Push-In Spring, Screwless - Leg Spring |
776261 Series
CONN HEADER VERT 14POS 4MM
| Part | Current Rating (Amps) | Connector Type | Number of Positions Loaded | Contact Shape | Style | Applications | Contact Type | Insulation Color | Termination | Mounting Type | Pitch - Mating | Pitch - Mating | Shrouding | Insulation Material | Features | Voltage Rating | Contact Material | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Fastening Type | Contact Finish - Mating | Voltage | Clamp Material - Plating | Color | Number of Levels | Mating Orientation | Wire Gauge [Min] | Wire Gauge [Max] | Current | Pitch [x] | Pitch [x] | Wire Termination | Contact Material - Plating [custom] | Positions Per Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 776261-2 | Varies by Wire Gauge | Header | All | Circular | Board to Cable/Wire | Automotive, Industrial | Male Pin | Natural | Solder | Panel Mount, Through Hole | 0.157 " | 4 mm | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | Mounting Flange, Sealable | 250 VAC | Brass | 14 | 0.157 in | 4 mm | -40 °C | 105 ░C | 3 | Locking Ramp | ||||||||||||||
TE Connectivity AMP Connectors 776261-4 | Varies by Wire Gauge | Header | All | Circular | Board to Cable/Wire | Automotive, Industrial | Male Pin | Gray | Solder | Panel Mount, Through Hole | 0.157 " | 4 mm | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | Mounting Flange, Sealable | 250 VAC | Brass | 14 | 0.157 in | 4 mm | -40 °C | 105 ░C | 3 | Locking Ramp | ||||||||||||||
TE Connectivity AMP Connectors 1-776261-1 | Varies by Wire Gauge | Header | All | Circular | Board to Cable/Wire | Automotive, Industrial | Male Pin | Black | Solder | Panel Mount, Through Hole | 0.157 " | 4 mm | Shrouded - 4 Wall | Polybutylene Terephthalate (PBT), Glass Filled | Mounting Flange, Sealable | 250 VAC | Brass | 14 | 0.157 in | 4 mm | -40 °C | 125 °C | 3 | Locking Ramp | Gold-Palladium | |||||||||||||
TE Connectivity AMP Connectors 1776261-5 | Through Hole | -55 °C | 105 ░C | 300 V | Stainless, Steel | Green | 1 | Horizontal with Board | 14 AWG | 22 AWG | 10 A | 5 mm | 0.197 in | Push-In Spring, Screwless - Leg Spring | Brass - Nickel Tin Plated | 5 | ||||||||||||||||||||||
TE Connectivity AMP Connectors 1776261-2 | Through Hole | -55 °C | 105 ░C | 300 V | Stainless, Steel | Green | 1 | Horizontal with Board | 14 AWG | 22 AWG | 10 A | 5 mm | 0.197 in | Push-In Spring, Screwless - Leg Spring | Brass - Nickel Tin Plated | 2 |
