CONTACT SPRING LOADED T/H GOLD

Search across all available documentation for this part.

Obsolete

Preci-Dip

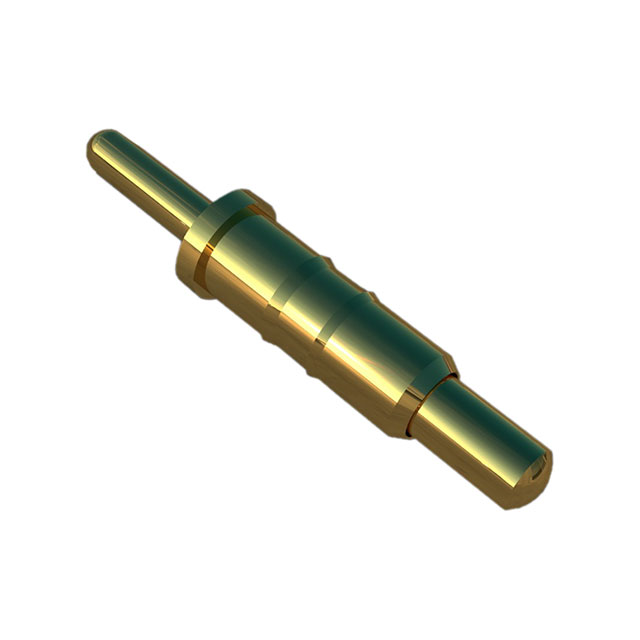

CONTACT SPRING LOADED T/H GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	90154-AS

Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass Alloy
Contact Type	Sleeve & Plunger (Pogo Pins)
Current Rating (Amps)	3 A
Mating Cycles	40000
Maximum Working Height [Max]	0.256 in
Maximum Working Height [Max]	6.5 mm
Minimum Working Height [Min]	0.201 in
Minimum Working Height [Min]	5.1 mm
Mounting Type	Through Hole
Operating Force - Initial	25.49 gf
Operating Force - Mid Compression	86.68 gf
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pad Layout Dimension [diameter]	1.83 mm
Pad Layout Dimension [diameter]	0.072 in
Plunger Size [diameter]	0.042 in
Plunger Size [diameter]	1.07 mm

CONTACT SPRING LOADED T/H GOLD

Part	Mating Cycles	Plunger Size [diameter]	Plunger Size [diameter]	Pad Layout Dimension [diameter]	Pad Layout Dimension [diameter]	Minimum Working Height [Min]	Minimum Working Height [Min]	Mounting Type	Current Rating (Amps)	Contact Finish	Operating Force - Mid Compression	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Operating Force - Initial	Contact Material	Maximum Working Height [Max]	Maximum Working Height [Max]
Preci-Dip 90154-AS	40000	0.042 in	1.07 mm	1.83 mm	0.072 in	0.201 in	5.1 mm	Through Hole	3 A	Gold	86.68 gf	-55 °C	125 °C	0.51 µm	20 µin	Sleeve & Plunger (Pogo Pins)	25.49 gf	Brass Alloy	0.256 in	6.5 mm
