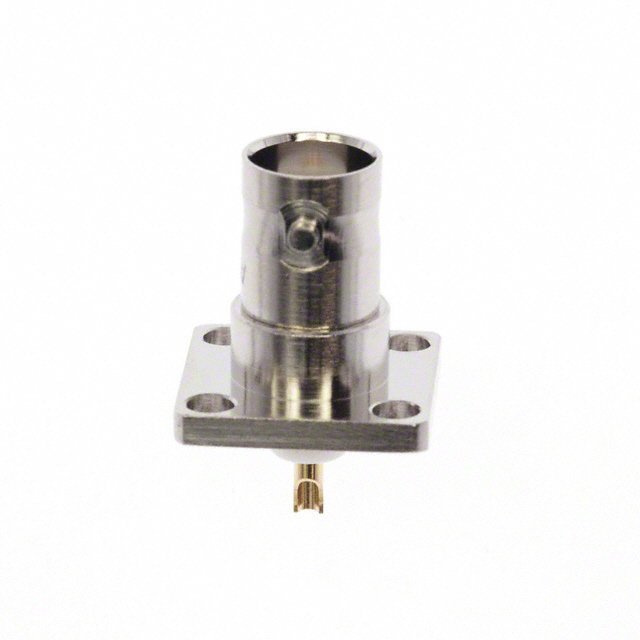

31-203-RFX

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC RCPT STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	31-203-RFX

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Extended Insulation
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Fastening Type	Housing Color	Mounting Feature	Body Material	Shield Termination	Impedance	Number of Ports	Features	Insertion Loss	Dielectric Material	Connector Type	Center Contact Material	Contact Termination	Voltage Rating	Center Contact Plating	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Connector Style	Frequency - Max [Max]
Amphenol RF 31-203-RFX	Bayonet Lock	Silver	Flange	Brass	Solder	50 Ohms	1	Extended Insulation	0.2 dB	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Phosphor Bronze	Solder Cup	500 V	Gold	500	-65 ░C	165 °C	Nickel	BNC	4 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
