SF6382-6PG-520
ActiveConxall/Switchcraft

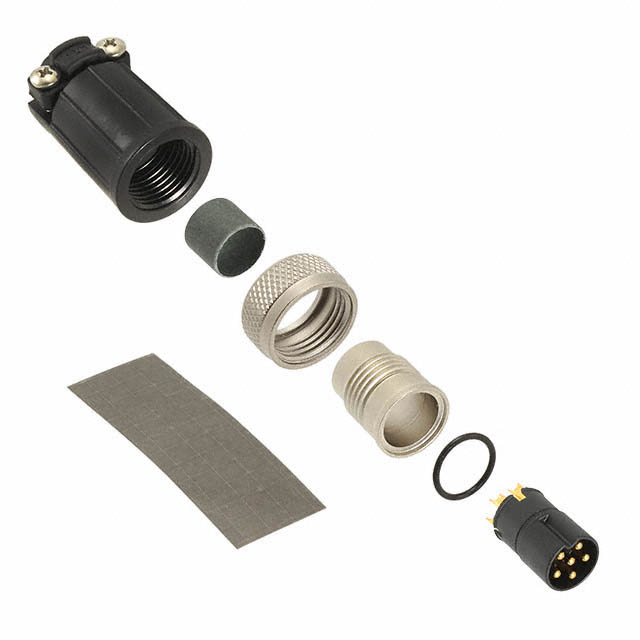

CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SF6382-6PG-520
ActiveConxall/Switchcraft
CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SF6382-6PG-520 | SF6382 Series |
|---|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled | Nylon, Polyamide (PA), Glass Filled |
| Color | Black, Silver | Black, Silver |
| Connector Type | Plug, Male Pins | Female Sockets, Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Polyester Resin | Polyester Resin |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 2 - 6 |
| Operating Temperature [Max] | 120 °C | 120 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded | Shielded |
SF6382 Series
CONN PLUG FMALE 4P GOLD SLDR CUP
| Part | Primary Material | Color | Number of Positions | Insert Material | Contact Material | Orientation | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Shell Material | Features | Backshell Material, Plating | Contact Finish - Mating | Ingress Protection | Shell Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft SF6382-4SG-520 | Metal | Black, Silver | 4 | Polyester Resin | Copper Alloy | Keyed | Free Hanging (In-Line) | -40 °C | 120 °C | Shielded | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | Glass Filled, Nylon, Polyamide (PA) | Gold | IP66/IP68 | Nickel | Female Sockets, Plug |
Conxall/Switchcraft SF6382-6SG-530 | Metal | Black, Silver | 6 | Polyester Resin | Copper Alloy | Keyed | Free Hanging (In-Line) | -40 °C | 120 °C | Shielded | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | Glass Filled, Nylon, Polyamide (PA) | Gold | IP66/IP68 | Nickel | Female Sockets, Plug |
Conxall/Switchcraft SF6382-3SG-520 | Metal | Black, Silver | Polyester Resin | Copper Alloy | Keyed | Free Hanging (In-Line) | -40 °C | 120 °C | Shielded | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | Glass Filled, Nylon, Polyamide (PA) | Gold | IP66/IP68 | Nickel | Female Sockets, Plug | |
Conxall/Switchcraft SF6382-6SG-520 | Metal | Black, Silver | 6 | Polyester Resin | Copper Alloy | Keyed | Free Hanging (In-Line) | -40 °C | 120 °C | Shielded | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | Glass Filled, Nylon, Polyamide (PA) | Gold | IP66/IP68 | Nickel | Female Sockets, Plug |
Conxall/Switchcraft SF6382-2PG-520 | Metal | Black, Silver | 2 | Polyester Resin | Copper Alloy | Keyed | Free Hanging (In-Line) | -40 °C | 120 °C | Shielded | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | Glass Filled, Nylon, Polyamide (PA) | Gold | IP66/IP68 | Nickel | Male Pins, Plug |
Conxall/Switchcraft SF6382-6PG-520 | Metal | Black, Silver | 6 | Polyester Resin | Copper Alloy | Keyed | Free Hanging (In-Line) | -40 °C | 120 °C | Shielded | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | Glass Filled, Nylon, Polyamide (PA) | Gold | IP66/IP68 | Nickel | Male Pins, Plug |
Conxall/Switchcraft SF6382-5PG-520 | Metal | Black, Silver | Polyester Resin | Copper Alloy | Keyed | Free Hanging (In-Line) | -40 °C | 120 °C | Shielded | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | Glass Filled, Nylon, Polyamide (PA) | Gold | IP66/IP68 | Nickel | Male Pins, Plug | |
Conxall/Switchcraft SF6382-3PG-520 | Metal | Black, Silver | Polyester Resin | Copper Alloy | Keyed | Free Hanging (In-Line) | -40 °C | 120 °C | Shielded | Copper Alloy | Backshell, Cable Clamp, Coupling Nut | Glass Filled, Nylon, Polyamide (PA) | Gold | IP66/IP68 | Nickel | Male Pins, Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 41.91 | |
| 10 | $ 36.70 | |||
| 25 | $ 35.11 | |||
| 50 | $ 33.98 | |||
| 100 | $ 32.85 | |||
| 250 | $ 31.04 | |||
Description
General part information
SF6382 Series
6 Position Circular Connector Plug, Male Pins Solder Cup
