SF6382-3SG-520

Active

Conxall/Switchcraft

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF6382-3SG-520

Active

Conxall/Switchcraft

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.47
		10	$ 32.81
		25	$ 31.39
		50	$ 30.38
		100	$ 29.37
		250	$ 27.75

Description

General part information

SF6382 Series

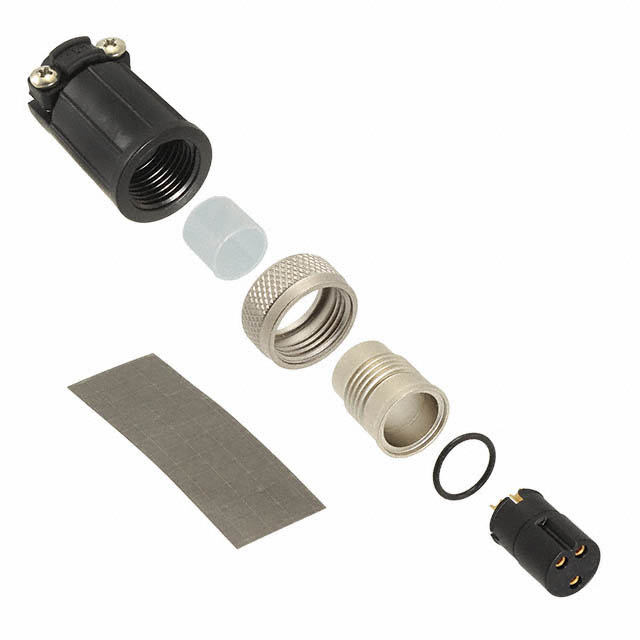

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF6382-3SG-520	SF6382 Series

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled	Nylon, Polyamide (PA), Glass Filled
Color	Black, Silver	Black, Silver
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyester Resin	Polyester Resin
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	-	2 - 6
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded

SF6382 Series

CONN PLUG FMALE 4P GOLD SLDR CUP

Part	Primary Material	Color	Number of Positions	Insert Material	Contact Material	Orientation	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Material	Features	Backshell Material, Plating	Contact Finish - Mating	Ingress Protection	Shell Finish	Connector Type
Conxall/Switchcraft SF6382-4SG-520	Metal	Black, Silver	4	Polyester Resin	Copper Alloy	Keyed	Free Hanging (In-Line)	-40 °C	120 °C	Shielded	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	Glass Filled, Nylon, Polyamide (PA)	Gold	IP66/IP68	Nickel	Female Sockets, Plug
Conxall/Switchcraft SF6382-6SG-530	Metal	Black, Silver	6	Polyester Resin	Copper Alloy	Keyed	Free Hanging (In-Line)	-40 °C	120 °C	Shielded	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	Glass Filled, Nylon, Polyamide (PA)	Gold	IP66/IP68	Nickel	Female Sockets, Plug
Conxall/Switchcraft SF6382-3SG-520	Metal	Black, Silver		Polyester Resin	Copper Alloy	Keyed	Free Hanging (In-Line)	-40 °C	120 °C	Shielded	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	Glass Filled, Nylon, Polyamide (PA)	Gold	IP66/IP68	Nickel	Female Sockets, Plug
Conxall/Switchcraft SF6382-6SG-520	Metal	Black, Silver	6	Polyester Resin	Copper Alloy	Keyed	Free Hanging (In-Line)	-40 °C	120 °C	Shielded	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	Glass Filled, Nylon, Polyamide (PA)	Gold	IP66/IP68	Nickel	Female Sockets, Plug
Conxall/Switchcraft SF6382-2PG-520	Metal	Black, Silver	2	Polyester Resin	Copper Alloy	Keyed	Free Hanging (In-Line)	-40 °C	120 °C	Shielded	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	Glass Filled, Nylon, Polyamide (PA)	Gold	IP66/IP68	Nickel	Male Pins, Plug
Conxall/Switchcraft SF6382-6PG-520	Metal	Black, Silver	6	Polyester Resin	Copper Alloy	Keyed	Free Hanging (In-Line)	-40 °C	120 °C	Shielded	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	Glass Filled, Nylon, Polyamide (PA)	Gold	IP66/IP68	Nickel	Male Pins, Plug
Conxall/Switchcraft SF6382-5PG-520	Metal	Black, Silver		Polyester Resin	Copper Alloy	Keyed	Free Hanging (In-Line)	-40 °C	120 °C	Shielded	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	Glass Filled, Nylon, Polyamide (PA)	Gold	IP66/IP68	Nickel	Male Pins, Plug
Conxall/Switchcraft SF6382-3PG-520	Metal	Black, Silver		Polyester Resin	Copper Alloy	Keyed	Free Hanging (In-Line)	-40 °C	120 °C	Shielded	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	Glass Filled, Nylon, Polyamide (PA)	Gold	IP66/IP68	Nickel	Male Pins, Plug
