CURB203-G
ActiveComchip Technology

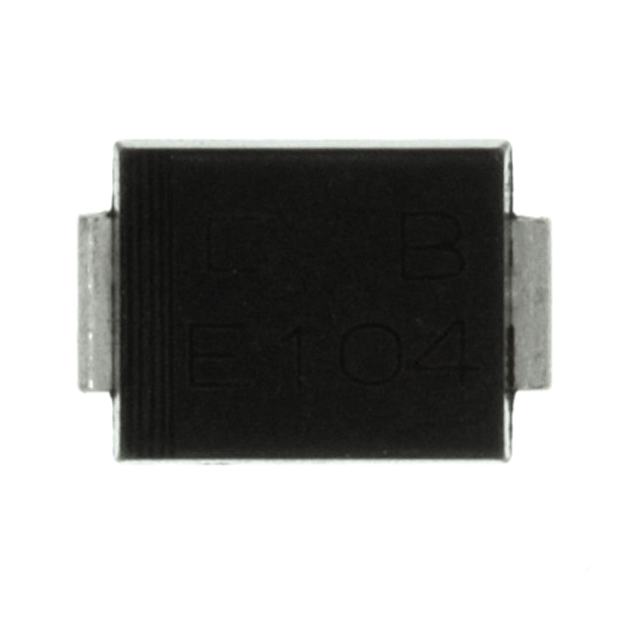

DIODE SWITCHING 200V 2A 2-PIN SMB T/R
Deep-Dive with AI
Search across all available documentation for this part.
CURB203-G
ActiveComchip Technology
DIODE SWITCHING 200V 2A 2-PIN SMB T/R
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CURB203-G | CURB203 Series |
|---|---|---|
| Current - Average Rectified (Io) | - | 2 A |
| Current - Reverse Leakage @ Vr | - | 5 µA |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature - Junction | - | 150 °C |
| Package / Case | - | SMB, DO-214AA |
| Reverse Recovery Time (trr) | - | 50 ns |
| Speed | - | 200 - 500 mA |
| Supplier Device Package | - | SMB |
| Supplier Device Package | - | DO-214AA |
| Technology | - | Standard |
| Voltage - DC Reverse (Vr) (Max) | - | 200 V |
| Voltage - Forward (Vf) (Max) @ If | - | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.65 | |
| Digi-Reel® | 1 | $ 0.65 | ||
| Tape & Reel (TR) | 3000 | $ 0.15 | ||
| 6000 | $ 0.14 | |||
| 9000 | $ 0.13 | |||
| 15000 | $ 0.12 | |||
| 21000 | $ 0.12 | |||
| 30000 | $ 0.11 | |||
| 75000 | $ 0.11 | |||
CURB203 Series
DIODE SWITCHING 200V 2A 2-PIN SMB T/R
| Part | Current - Average Rectified (Io) | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Reverse Leakage @ Vr | Speed | Operating Temperature - Junction | Mounting Type | Supplier Device Package | Supplier Device Package | Voltage - Forward (Vf) (Max) @ If | Reverse Recovery Time (trr) | Package / Case | Technology |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Comchip Technology CURB203-G | ||||||||||||
Comchip Technology CURB203-G | 2 A | 200 V | 5 µA | 200 mA, 500 ns | 150 °C | Surface Mount | SMB | DO-214AA | 1 V | 50 ns | DO-214AA, SMB | Standard |
Description
General part information
CURB203 Series
Diode 200 V 2A Surface Mount DO-214AA (SMB)
