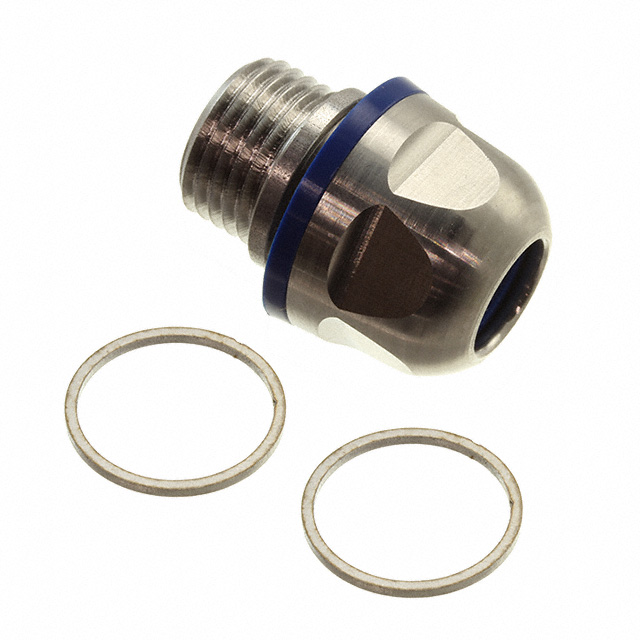

BG216VACP

Active

Pflitsch

CABLE GLAND 7.11-8.89MM M16

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 7.11-8.89MM M16

Technical Specifications

Parameters and characteristics for this part

Specification	BG216VACP

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	8.89 mm
Outside Cable Diameter (Max) [Max]	0.35 "
Outside Cable Diameter (Min) [Min] [diameter]	0.28 in
Outside Cable Diameter (Min) [Min] [diameter]	7.11 mm
Panel Hole Size	0.63 in
Panel Hole Size	16 mm
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	M16x1.5
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Material	Type	Color	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Thread Length	Thread Length	Includes
Pflitsch BG216VACP	0.28 in	7.11 mm	IP66 IP68 IP69	85 °C	-40 °C	M16x1.5	Stainless Steel	Cable Gland	Silver	0.63 in	16 mm	8.89 mm	0.35 "	0.354 in	9 mm	Sealing Ring

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Stainless Steel M16x1.5 Silver
