TLE52062SAKSA1

Obsolete

Infineon Technologies

IC MOTOR DRIVER 5.3V-40V TO220-7

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC MOTOR DRIVER 5.3V-40V TO220-7

Technical Specifications

Parameters and characteristics for this part

Specification	TLE52062SAKSA1

Current - Output	5 A
Function	Driver - Fully Integrated, Control and Power Stage
Grade	Automotive
Interface	Parallel
Motor Type - AC, DC	Brushed DC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Half Bridge (2)

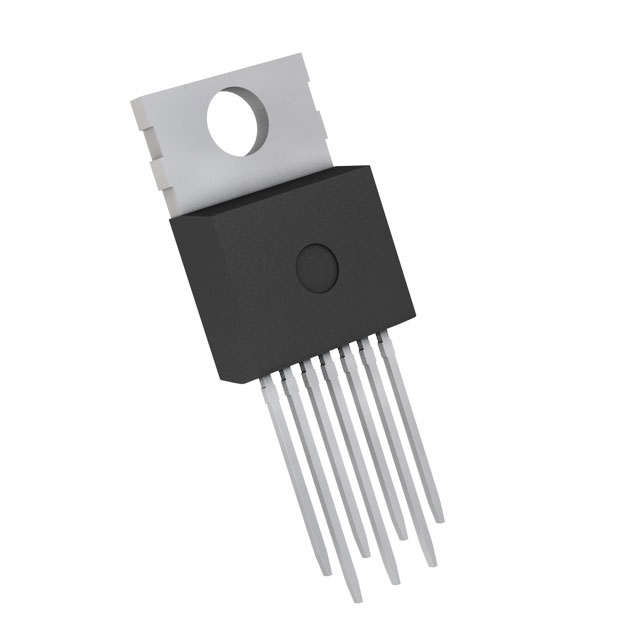

Package / Case	TO-220-7
Supplier Device Package	PG-TO220-7-12
Technology	DMOS
Voltage - Load [Max]	40 V
Voltage - Load [Min]	5.3 V

Part	Supplier Device Package	Interface	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Function	Motor Type - AC, DC	Mounting Type	Technology	Package / Case	Grade	Current - Output	Output Configuration
Infineon Technologies TLE52062SAKSA1	PG-TO220-7-12	Parallel	40 V	5.3 V	150 °C	-40 °C	Driver - Fully Integrated Control and Power Stage	Brushed DC	Through Hole	DMOS	TO-220-7	Automotive	5 A	Half Bridge (2)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Motor Driver DMOS Parallel PG-TO220-7-12
