Q-0E01X00082.5M

Active

Amphenol Custom Cable

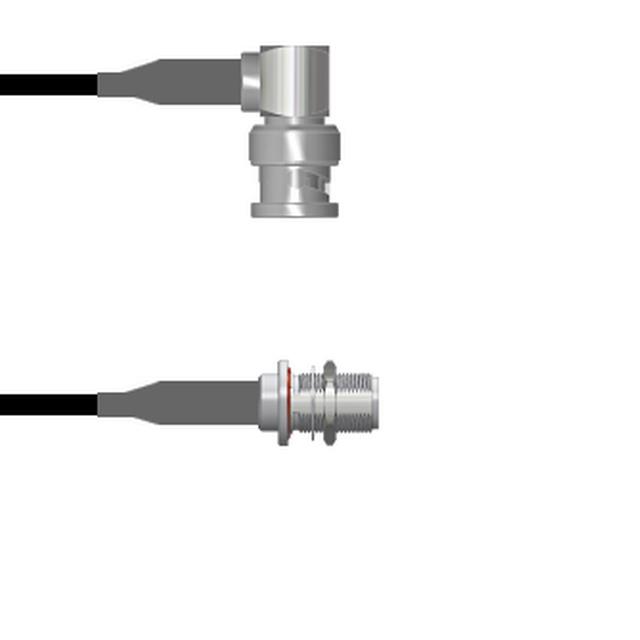

CBL ASSY BNC-NTYPE PLG-JACK 8.2'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0E01X00082.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-NTYPE PLG-JACK 8.2'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0E01X00082.5M

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-58
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	8.2 '
Length	98.4 in
Length	2.5 m
Overall Impedance	50 Ohms
Style	BNC to N-Type

Q-0E01X0 Series

Part	Color	1st Contact Gender	Cable Type	2nd Connector Mounting Type	Overall Impedance	Style	Length	Length	Length	1st Connector	1st Connector Mounting Type	2nd Connector Mounting Feature	2nd Connector	Frequency - Max [Max]	Features	2nd Contact Gender	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0E01X0008048i	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type	1200 mm	4 ft	48 in	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female
Amphenol Custom Cable Q-0E01X0008.75M	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type	750 mm		29.53 "	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female
Amphenol Custom Cable Q-0E01X0008108i	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type	2.7 m	9 ft	108 in	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female
Amphenol Custom Cable Q-0E01X0008024i	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type	609.6 mm		24 "	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female
Amphenol Custom Cable Q-0E01X0008018i	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type				BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0E01X00082.5M	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type	2.5 m	8.2 '	98.4 in	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female
Amphenol Custom Cable Q-0E01X0008072i	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type	1.8 m	6 ft	72 in	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female
Amphenol Custom Cable Q-0E01X0008084i	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type	2.1 m	7 ft	84 in	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female
Amphenol Custom Cable Q-0E01X0008012i	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type	304.8 mm		12 "	BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female
Amphenol Custom Cable Q-0E01X0008.25M	Black	Male	RG-58	Panel Mount	50 Ohms	BNC to N-Type				BNC Plug Right Angle	Free Hanging (In-Line)	Bulkhead - Front Side Nut	N-Type Jack	4 GHz	Shielded	Female		250 mm	9.843 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 102.93
		25	$ 95.77
		50	$ 88.62
		100	$ 82.49
		250	$ 77.38

Description

General part information

Q-0E01X0 Series

Cable Assembly Coaxial BNC to N-Type RG-58 98.4" (2.5m) 8.2'

Documents

Technical documentation and resources

No documents available
