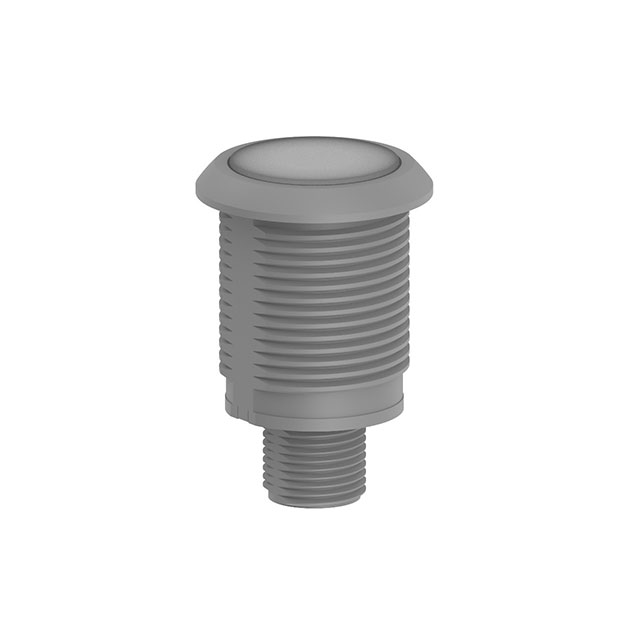

S22L2FRGB14Q

Active

BANNER ENGINEERING

S22 PRO SERIES: 14-COLOR RGB INDICATOR-FDA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S22L2FRGB14Q

Active

BANNER ENGINEERING

S22 PRO SERIES: 14-COLOR RGB INDICATOR-FDA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S22L2FRGB14Q

Current	70 mA
Ingress Protection	IP69K, IP67, IP66
Lamp Color	Blue, Green, Magenta, Amber, Sky Blue, Orange, Lime Green, Violet, Spring Green, Red, Cyan, Rose
Lens Transparency	Diffused
Millicandela Rating [custom]	0.3 mcd
Millicandela Rating [custom]	1.9 mcd
Millicandela Rating [custom]	1.2 mcd
Millicandela Rating [custom]	2.2 mcd
Millicandela Rating [custom]	2 mcd
Millicandela Rating [custom]	0.9 mcd
Millicandela Rating [custom]	1.8 mcd
Panel Cutout Dimensions	0.866 in
Panel Cutout Dimensions	22 mm
Panel Cutout Shape	Round
Ratings	DC
Termination Style	Quick Connect
Type	LED
Voltage [Max]	30 V
Voltage [Min]	10 V

S22L2FRGB Series

Part	Type	Current	Lens Transparency	Voltage [Max]	Voltage [Min]	Panel Cutout Dimensions	Panel Cutout Dimensions	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Termination Style	Panel Cutout Shape	Lamp Color	Ratings	Ingress Protection	Millicandela Rating
BANNER ENGINEERING S22L2FRGB14Q	LED	70 mA	Diffused	30 V	10 V	0.866 in	22 mm	0.3 mcd	1.9 mcd	1.2 mcd	2.2 mcd	2 mcd	0.9 mcd	1.8 mcd	Quick Connect	Round	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	DC	IP66 IP67 IP69K
BANNER ENGINEERING S22L2FRGB14QP	LED	70 mA	Diffused	30 V	10 V	0.866 in	22 mm	0.3 mcd	1.9 mcd	1.2 mcd	2.2 mcd	2 mcd	0.9 mcd	1.8 mcd		Round	Amber Blue Cyan Green Lime Green Magenta Orange Red Rose Sky Blue Spring Green Violet	DC	IP66 IP67 IP69K
BANNER ENGINEERING S22L2FRGB7QP	LED	70 mA	Diffused	30 V	10 V	0.866 in	22 mm									Round	Blue Cool Cyan Green Magenta Red White Yellow	DC	IP66 IP67 IP69K	0.3 mcd 0.8 mcd 1.2 mcd 1.9 mcd 2 mcd 2.5 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 75.00
Newark	Each	1	$ 75.00

Description

General part information

S22L2FRGB Series

LED Panel Indicator Amber, Blue, Cyan, Green, Lime Green, Magenta, Rose, Sky Blue, Spring Green, Orange, Red, Violet Diffused 10V ~ 30V 70mA Quick Connect
