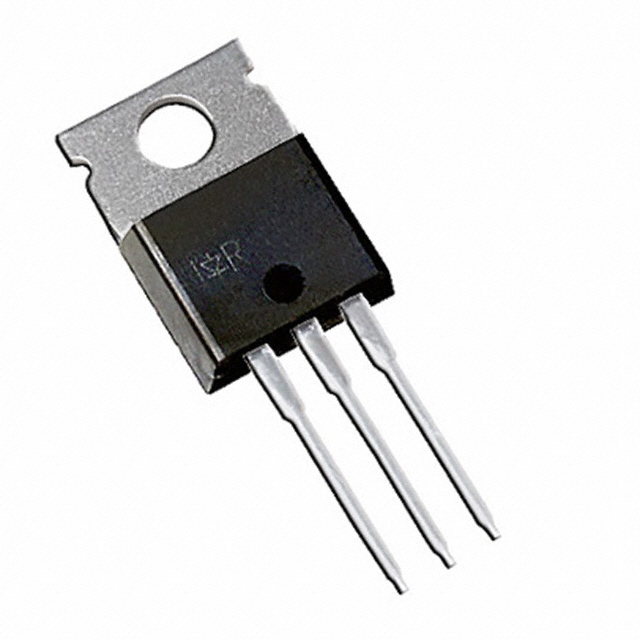

IPS5551T

Obsolete

Infineon Technologies

IC PWR SWITCH N-CHAN 1:1 TO-220

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC PWR SWITCH N-CHAN 1:1 TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	IPS5551T

Current - Output (Max) [Max]	35 A
Fault Protection	Over Temperature, Current Limiting (Fixed)
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	TO-273AA
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	4.6 mOhm
Supplier Device Package	SUPER-220™ (TO-273AA)
Switch Type	General Purpose
Voltage - Load [Max]	18 V
Voltage - Load [Min]	6 V
Voltage - Supply (Vcc/Vdd)	False

Part	Rds On (Typ)	Ratio - Input:Output [custom]	Voltage - Supply (Vcc/Vdd)	Mounting Type	Output Type	Fault Protection	Output Configuration	Package / Case	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Switch Type	Number of Outputs	Voltage - Load [Max]	Voltage - Load [Min]	Input Type	Current - Output (Max) [Max]
Infineon Technologies IPS5551T	4.6 mOhm	1:1		Through Hole	N-Channel	Current Limiting (Fixed) Over Temperature	High Side	TO-273AA	On/Off	150 °C	-40 °C	SUPER-220™ (TO-273AA)	General Purpose	1	18 V	6 V	Non-Inverting	35 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Switch/Driver 1:1 N-Channel 35A SUPER-220™ (TO-273AA)
