1379659-1

Active

TE Connectivity AMP Connectors

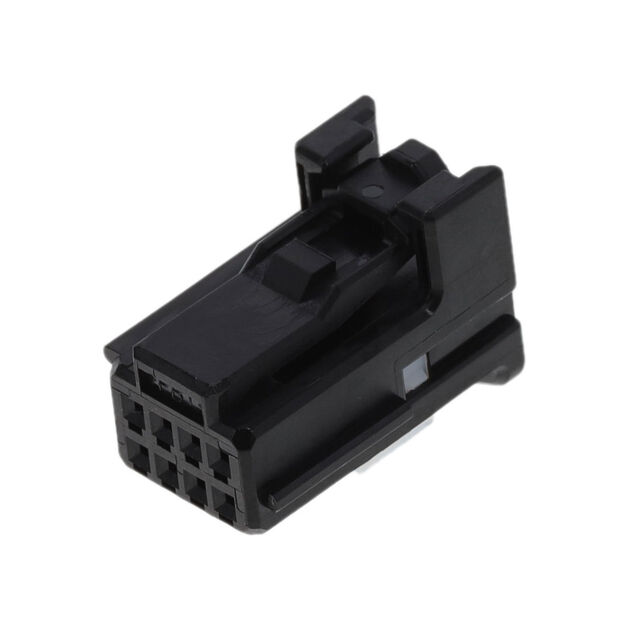

CONN PLUG HSG 8POS 2.20MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 8POS 2.20MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Plug Black 0.087" (2.20mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1379659-1	1379659 Series

	-	-
Color	Black	Gray, Natural, Black
Connector Type	Plug	Receptacle, Plug
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	-	Latch Lock
Features	-	Terminal Position Lock (TPA)
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)	Surface Mount, Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	8	8
Number of Rows	2	2
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.087 in	0.087 in
Pitch [x]	2.2 mm	2.2 mm
Row Spacing	-	7.6 mm
Row Spacing	-	0.299 in
Row Spacing [x]	0.118 in	0.118 in
Row Spacing [x]	3 mm	3 mm

8W PLUG HOUSING ASSY GREEN

Part	Connector Type	Mounting Type	Insulation Material	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Features	Color	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Termination	Contact Type	Number of Positions	Number of Rows	Row Spacing [x]	Row Spacing [x]	Note
TE Connectivity AMP Connectors 1379659-4
TE Connectivity AMP Connectors 1379659-3
TE Connectivity AMP Connectors 1379659-2	Receptacle	Surface Mount	Polybutylene Terephthalate (PBT)	7.6 mm	0.299 in	0.087 in	2.2 mm	Terminal Position Lock (TPA)	Gray	100 °C	-40 °C	Latch Lock	Crimp	Female Socket	8	2
TE Connectivity AMP Connectors 1379659-5	Receptacle	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)			0.087 in	2.2 mm	Terminal Position Lock (TPA)	Natural	100 °C	-40 °C	Latch Lock	Crimp	Female Socket	8	2	0.118 in	3 mm
TE Connectivity AMP Connectors 1379659-1	Plug	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)			0.087 in	2.2 mm		Black	100 °C	-40 °C		Crimp	Female Socket	8	2	0.118 in	3 mm	Contacts Not Included
