PES12-42S-N0024

Active

Bourns Inc.

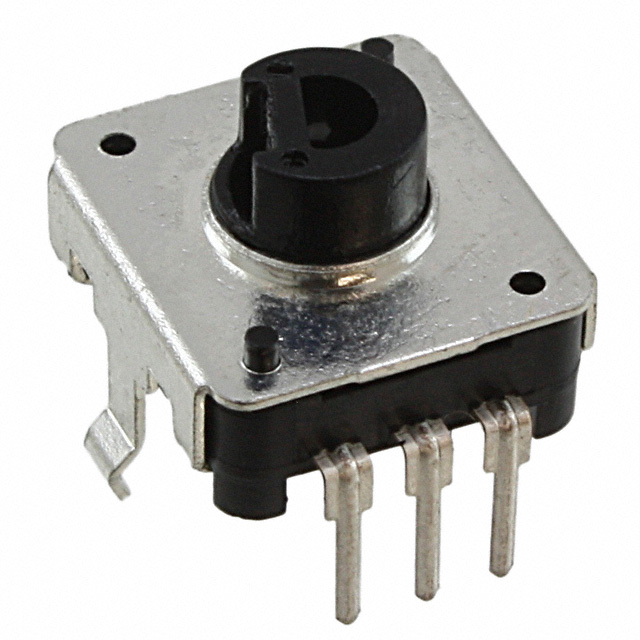

ROTARY ENCODER, PRO AUDIO, MECHANICAL, INCREMENTAL, 24 PPR, 24 DETENTS, VERTICAL

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER, PRO AUDIO, MECHANICAL, INCREMENTAL, 24 PPR, 24 DETENTS, VERTICAL

Technical Specifications

Parameters and characteristics for this part

Specification	PES12-42S-N0024

Actuator Type	6mm Dia Slotted End
Built in Switch	False
Detent	True
Encoder Type	Mechanical
Mounting Type	PCB Through Hole, Panel
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	24 per Revolution
Rotational Life (Cycles Min) [Min]	30K
Termination Style	PC Pin

Part	Detent	Encoder Type	Mounting Type	Built in Switch	Pulses per Revolution	Output Type	Termination Style	Rotational Life (Cycles Min) [Min]	Orientation	Actuator Type
Bourns Inc. PES12-42S-N0024		Mechanical	Panel PCB Through Hole		24 per Revolution	Quadrature (Incremental)	PC Pin	30K	Vertical	6mm Dia Slotted End

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 24 Quadrature (Incremental) Vertical
