252102-75
ActiveAmphenol RF

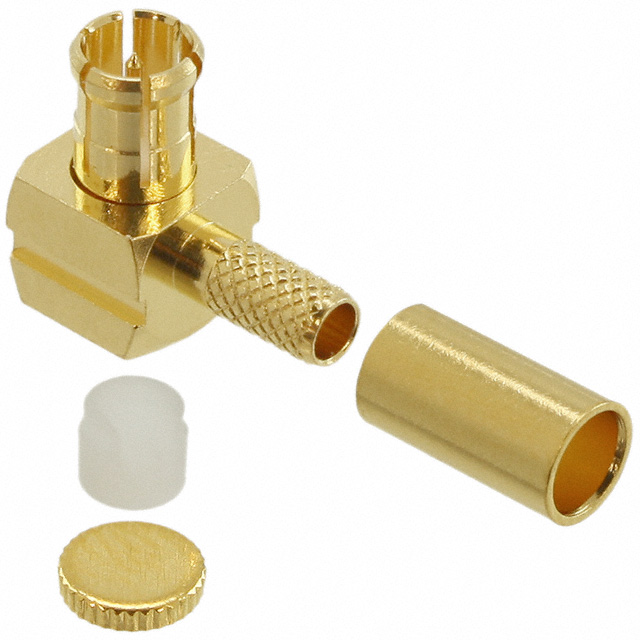

RF / COAXIAL CONNECTOR, MCX COAXIAL, RIGHT ANGLE PLUG, CRIMP, 75 OHM, RG179, RG187A, BRASS
Deep-Dive with AI
Search across all available documentation for this part.
252102-75
ActiveAmphenol RF
RF / COAXIAL CONNECTOR, MCX COAXIAL, RIGHT ANGLE PLUG, CRIMP, 75 OHM, RG179, RG187A, BRASS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 252102-75 |
|---|---|
| Body Finish | Gold |
| Body Material | Beryllium Copper |
| Cable Group | 179A, 187A, 187, M17/94-RG179, RG-179, Belden 9221, 179B |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 75 Ohms |
| Includes | 1 Ferrule, 1 End Cap, 1 Connector, 1 Gasket |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
252102 Series
MCX Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line), Right Angle Solder
