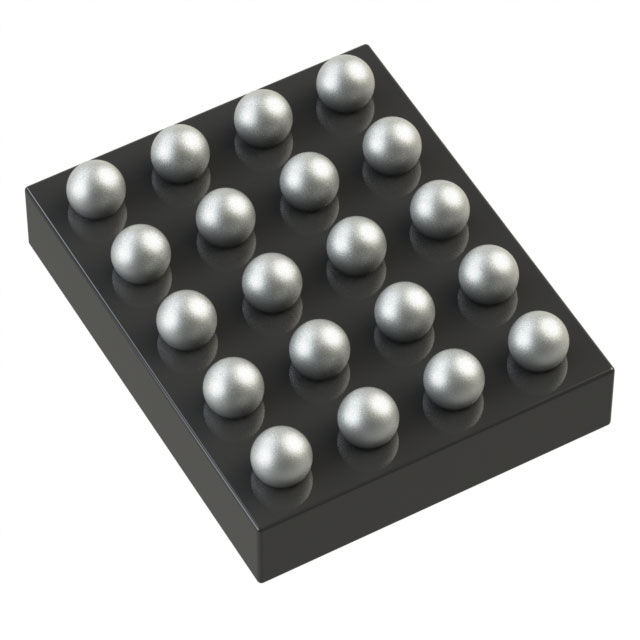

MAX9877EWP+TG45
ActiveAnalog Devices Inc./Maxim Integrated
IC AMP CLASS D MONO 825MW 20WLP
Deep-Dive with AI
Search across all available documentation for this part.
MAX9877EWP+TG45
ActiveAnalog Devices Inc./Maxim Integrated
IC AMP CLASS D MONO 825MW 20WLP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9877EWP+TG45 | MAX9877 Series |
|---|---|---|
| Features | Shutdown, Volume Control, Input Multiplexer, Depop, Short-Circuit and Thermal Protection, I2C | Shutdown, Volume Control, Input Multiplexer, Depop, Short-Circuit and Thermal Protection, I2C |
| Max Output Power x Channels @ Load | 825 mW, 53 mW | 53 - 825 mW |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | 1-Channel (Mono) with Stereo Headphones | 1-Channel (Mono) with Stereo Headphones |
| Package / Case | 20-WFBGA, WLBGA | 20-WFBGA, CSPBGA, WLBGA |
| Supplier Device Package | 20-WLP | 20-UCSP (1.7x2.56), 20-WLP |
| Type | Class D | Class D |
| Voltage - Supply [Max] | 5.25 V | 5.25 V |
| Voltage - Supply [Min] | 2.7 V | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAX9877 Series
IC AMP CLASS D MONO 825MW 20UCSP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Features | Max Output Power x Channels @ Load | Type | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9877AERP+T | 85 °C | -40 °C | Surface Mount | 20-UCSP (1.7x2.56) | Depop, I2C, Input Multiplexer, Short-Circuit and Thermal Protection, Shutdown, Volume Control | 53 mW, 825 mW | Class D | 1-Channel (Mono) with Stereo Headphones | 5.25 V | 2.7 V | 20-WFBGA, CSPBGA |
Analog Devices Inc./Maxim Integrated MAX9877EWP+TG45 | 85 °C | -40 °C | Surface Mount | 20-WLP | Depop, I2C, Input Multiplexer, Short-Circuit and Thermal Protection, Shutdown, Volume Control | 53 mW, 825 mW | Class D | 1-Channel (Mono) with Stereo Headphones | 5.25 V | 2.7 V | 20-WFBGA, WLBGA |
Description
General part information
MAX9877 Series
Amplifier IC 1-Channel (Mono) with Stereo Headphones Class D 20-WLP
Documents
Technical documentation and resources
No documents available
