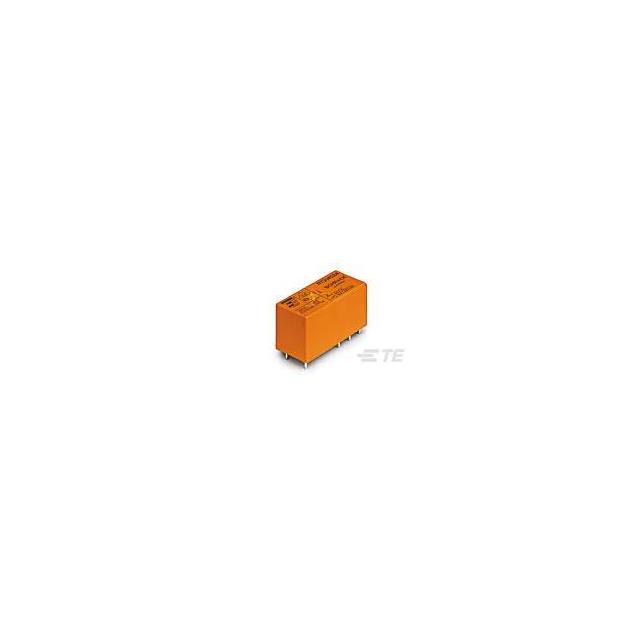

5-1393239-3

Active

TE Connectivity Potter & Brumfield Relays

RT214006

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RT214006

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Relay Coil

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

RT184024

Part	Must Release Voltage	Coil Insulation	Load - Max Switching	Release Time	Coil Voltage	Contact Rating (Current)	Contact Material	Termination Style	Coil Current	Approval Agency	Operate Time	Switching Voltage [Max]	Mounting Type	Must Operate Voltage	Coil Type	Seal Rating	Coil Resistance	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type
TE Connectivity Potter & Brumfield Relays 4-1393239-9
TE Connectivity Potter & Brumfield Relays 4-1393239-4	2.4 VDC	Class F	4000 VA	8 ms	24 VDC	10 A	Gold (Au), Silver Nickel (AgNi)	PC Pin	10.4 mA	CQC, CSA, cURus, VDE	10 ms	400 VAC	Through Hole	18 VDC	Non Latching	Sealed - Flux Protection	2.3 kOhms	SPDT (1 Form C)	85 °C	-40 °C	General Purpose
TE Connectivity Potter & Brumfield Relays 5-1393239-3
