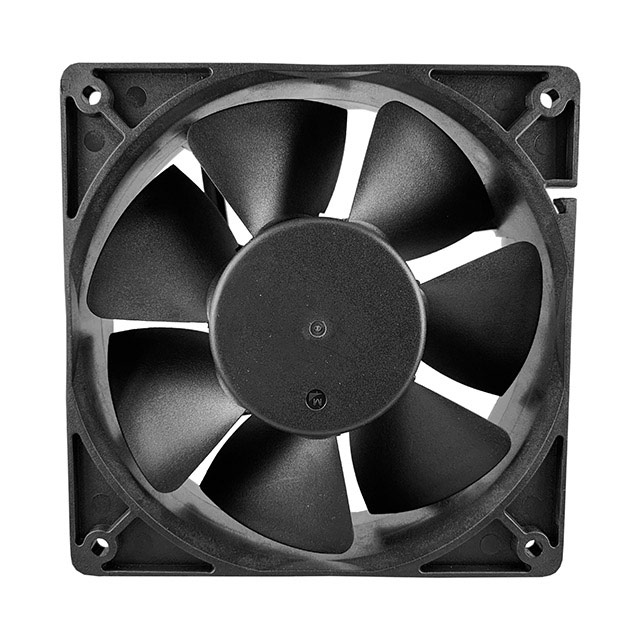

FMA1-12038WBHW12

Active

Qualtek

EC FAN, 120X120X38MM, 2-BALL BEA

Search across all available documentation for this part.

Active

Qualtek

EC FAN, 120X120X38MM, 2-BALL BEA

Technical Specifications

Parameters and characteristics for this part

Specification	FMA1-12038WBHW12

Approval Agency	CE, cURus
Bearing Type	Ball
Current Rating (Amps)	0.18 A
Fan Type	Tubeaxial
Features	Electronic Commutation (EC)
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	49.3 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	3500 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	90.5 Pa
Static Pressure	0.363 in H2O
Termination	2 Wire Leads
Voltage - Rated [Max]	240 VAC
Voltage - Rated [Min]	100 VAC
Width [y]	38.5 mm

Part	Termination	Fan Type	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	RPM	Noise	Bearing Type	Current Rating (Amps)	Material - Blade	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated [Min]	Voltage - Rated [Max]	Features	Approval Agency	Ingress Protection	Width [y]	Lifetime @ Temp.
Qualtek FMA1-12038WBHW12	2 Wire Leads	Tubeaxial	90.5 Pa	0.363 in H2O	-20 °C	70 °C	-20 C	70 °C	Plastic	3500 RPM	49.3 dB(A)	Ball	0.18 A	Plastic	120 mm	120 mm	100 VAC	240 VAC	Electronic Commutation (EC)	CE cURus	IP54 - Dust Protected Water Resistant	38.5 mm	70000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 100 ~ 240VAC Square - 120mm L x 120mm H Ball 123.9 CFM (3.47mł/min) 2 Wire Leads
