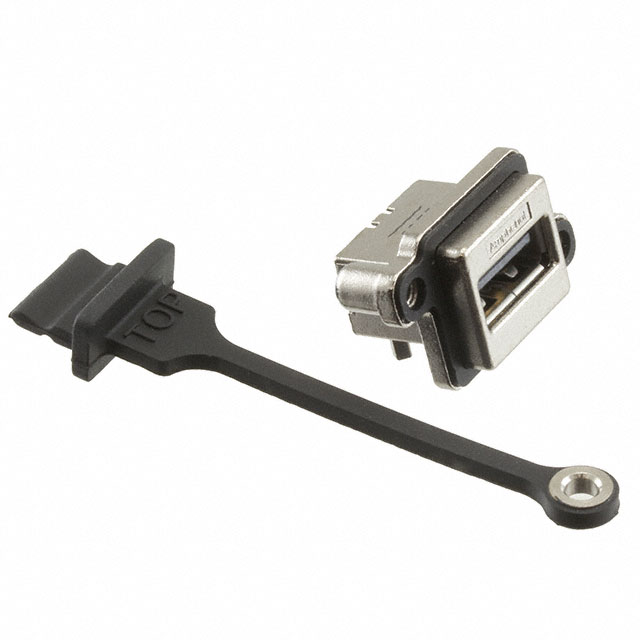

MUSBA111M5
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB2.0 TYPEA 4P PCB RA
Deep-Dive with AI
Search across all available documentation for this part.
MUSBA111M5
ActiveAmphenol ICC (Commercial Products)
CONN RCPT USB2.0 TYPEA 4P PCB RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MUSBA111M5 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Features | Cover |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Flange, Horizontal |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
MUSBA Series
| Part | Contact Finish | Shielding | Connector Type | Number of Contacts [custom] | Ingress Protection | Gender | Number of Ports | Insulation Color | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Specifications | Termination | Current Rating (Amps) | Shell/Shielding Material | Mounting Feature | Mating Cycles | Features | Mounting Type | Convert To (Adapter End) | Convert From (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (Commercial Products) | Gold | Shielded | USB-A (USB TYPE-A) | 4 | IP67 - Dust Tight Waterproof | Receptacle | 1 | Black | -40 °C | 105 ░C | UL94 V-0 | USB 2.0 | PC Board Solder | 1.5 A | Copper Alloy | Flange Horizontal | 1500 | ||||
Amphenol ICC (Commercial Products) | Gold | Shielded | USB-A (USB TYPE-A) | 4 | IP67 - Dust Tight Waterproof | Receptacle | 1 | Black | -40 °C | 105 ░C | UL94 V-0 | USB 2.0 | Solder | 1.5 A | Copper Alloy | Flange Horizontal | 1500 | Cover | Panel Mount Right Angle Through Hole | ||
Amphenol ICC (Commercial Products) | Board Mounted | 14 Pos Male Pins Rectangular Connector | USB-A (USB TYPE-A) Receptacle | ||||||||||||||||||
Amphenol ICC (Commercial Products) | Board Mounted | Receptacle USB-A (USB TYPE-A) | USB-A (USB TYPE-A) Receptacle | ||||||||||||||||||
Amphenol ICC (Commercial Products) | Board Mounted | 14 Pos Male Pins Rectangular Connector | USB-A (USB TYPE-A) Receptacle | ||||||||||||||||||
Amphenol ICC (Commercial Products) | Terminal Blocks | USB-A (USB TYPE-A) Receptacle | |||||||||||||||||||
Amphenol ICC (Commercial Products) | Board Mounted | Receptacle USB-A (USB TYPE-A) | USB-A (USB TYPE-A) Receptacle | ||||||||||||||||||
Amphenol ICC (Commercial Products) | Board Mounted | 14 Pos Male Pins Rectangular Connector | USB-A (USB TYPE-A) Receptacle | ||||||||||||||||||
Amphenol ICC (Commercial Products) | Gold | Shielded | USB-A (USB TYPE-A) | 4 | IP67 - Dust Tight Waterproof | Receptacle | 1 | Black | -40 °C | 105 ░C | UL94 V-0 | USB 2.0 | Solder | 1.5 A | Copper Alloy | Flange Horizontal | 1500 | Panel Mount Right Angle Through Hole | |||
Amphenol ICC (Commercial Products) | Gold | Shielded | USB-A (USB TYPE-A) | 4 | IP67 - Dust Tight Waterproof | Receptacle | 1 | Black | -40 °C | 105 ░C | UL94 V-0 | USB 2.0 | Solder | 1.5 A | Copper Alloy | Flange Horizontal | 1500 | Cover | Panel Mount Right Angle Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.74 | |
| 10 | $ 13.95 | |||
| 25 | $ 13.41 | |||
| 50 | $ 12.88 | |||
| 100 | $ 12.16 | |||
| 250 | $ 11.09 | |||
| 500 | $ 10.37 | |||
| 1000 | $ 9.51 | |||
Description
General part information
MUSBA Series
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Panel Mount, Through Hole, Right Angle
