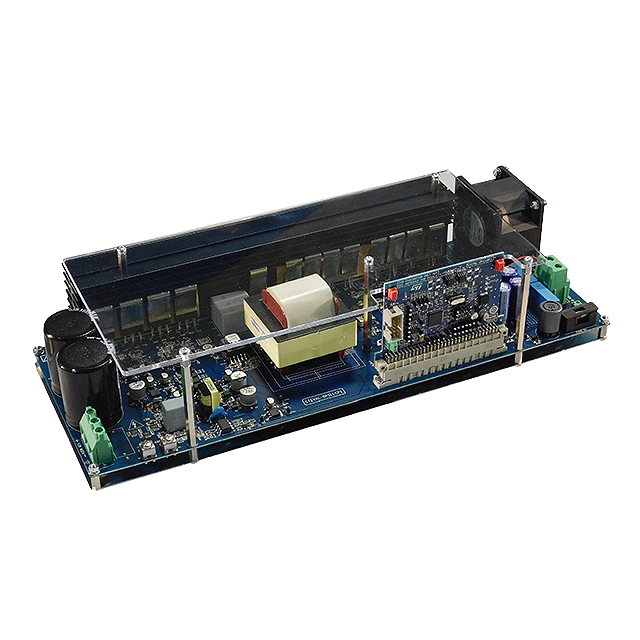

STEVAL-DPSLLCK1
Active3 KW FULL BRIDGE LLC RESONANT DIGITAL POWER SUPPLY EVALUATION KIT
Deep-Dive with AI
Search across all available documentation for this part.
STEVAL-DPSLLCK1
Active3 KW FULL BRIDGE LLC RESONANT DIGITAL POWER SUPPLY EVALUATION KIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-DPSLLCK1 | VIPER27 Series |
|---|---|---|
| - | - | |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 62.5 A | 62.5 A |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Outputs and Type | Isolated | Isolated |
| Outputs and Type | 1 | 1 |
| Power - Output | 3 kW | 3 kW |
| Supplied Contents | Board(s) | Board(s) |
| Utilized IC / Part | VIPer27 | VIPer27 |
| Voltage - Input [Max] | 425 V | 425 V |
| Voltage - Input [Min] | 375 V | 375 V |
| Voltage - Output | 48 V | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
VIPER27 Series
VIPerPlus family: Fixed frequency 12W high performance off line high voltage converter
| Part | Power - Output | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Voltage - Output | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VIPER27HDTR | |||||||||||
STMicroelectronics STEVAL-DPSLLCK1 | |||||||||||
STMicroelectronics VIPER27HN | |||||||||||
STMicroelectronics VIPER27HN | |||||||||||
STMicroelectronics VIPER27HN | |||||||||||
STMicroelectronics VIPER27HD | |||||||||||
STMicroelectronics VIPER27LD | |||||||||||
STMicroelectronics VIPER27LD | |||||||||||
STMicroelectronics VIPER27LN | |||||||||||
STMicroelectronics VIPER27HD | |||||||||||
STMicroelectronics VIPER27LN | |||||||||||
STMicroelectronics STEVAL-DPSLLCK1 | |||||||||||
STMicroelectronics STEVAL-DPSLLCK1 | 3 kW | 62.5 A | 375 V | 425 V | VIPer27 | Board(s) | Fully Populated | Isolated | 1 | 48 V | DC/DC, Step Down |
STMicroelectronics VIPER27LN | |||||||||||
STMicroelectronics VIPER27LDTR | |||||||||||
STMicroelectronics VIPER27HDTR |
Description
General part information
VIPER27 Series
The device is an off-line converter with an 800 V rugged power section, a PWM control, two levels of over-current protection, overvoltage and overload protections, hysteretic thermal protection, soft-start and safe auto-restart after any fault condition removal. Burst mode operation and device very low consumption help to meet the standby energy saving regulations.
Advance frequency jittering reduces EMI filter cost. Brown-out function protects the switch mode power supply when the rectified input voltage level is below the normal minimum level specified for the system. The high voltage start-up circuit is embedded in the device.
