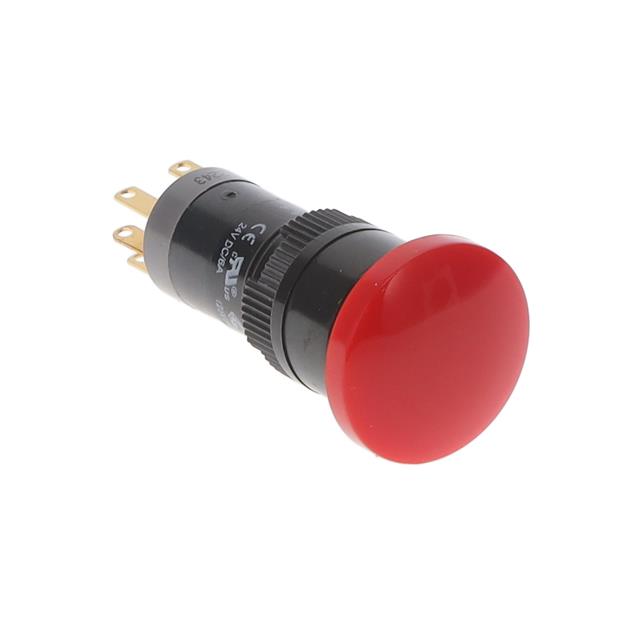

P16OAR10RED
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 8A 125V
Deep-Dive with AI
Search across all available documentation for this part.
P16OAR10RED
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 8A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P16OAR10RED |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Mushroom, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 8 A, 6 A |
| Electrical Life | 50000 Cycles |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.71 | |
| 20 | $ 12.96 | |||
| 40 | $ 12.40 | |||
| 60 | $ 12.08 | |||
| 100 | $ 11.69 | |||
| 260 | $ 10.99 | |||
| 500 | $ 10.53 | |||
Description
General part information
P16OAR10 Series
Pushbutton Switch SPDT Standard Panel Mount, Front
Documents
Technical documentation and resources
No documents available
