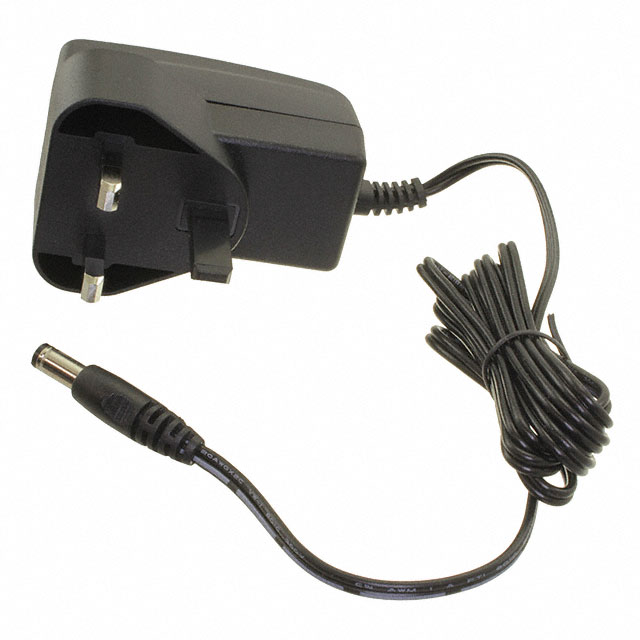

Specification	WR95E1000CCP-F(R6B)

Applications	ITE (Commercial)
Approval Agency	UKRSepro, EAC, CE, LPS, CB
Cord Length	59 in
Current - Output (Max)	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	BS 1363
Input Type	Fixed Blade
No Load Power Consumption (Max)	75 mW
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	0 °C
Output Connector	Barrel Plug
Output Connector I.D.	2.1 mm
Output Connector Length	11 mm
Output Connector O.D.	5.5 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	United Kingdom
Size / Dimension Height	1.93 in
Size / Dimension Length	2.72 in
Size / Dimension Width	1.93 in
Standard Number	60950-1
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output	12 V

WR95E1000 Series

Part	Input Connector	Form	Input Type	Standard Number	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Power (Watts)	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Current - Output (Max)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Output	No Load Power Consumption (Max)	Efficiency	Cord Length	Approval Agency	Operating Temperature (Min)	Operating Temperature (Max)	Polarization	Applications	Region Utilized
GlobTek, Inc. WR95E1000LCP-F(R6B)	BS 1363	Wall Mount (Class II)	Fixed Blade	60950-1	90 V	264 V	12 W	2.5 mm	Barrel Plug	11 mm	5.5 mm	1 A	1.93 in	2.72 in	1.93 in	12 V	75 mW	Level VI	60.2 in	CB CE EAC LPS UKRSepro	0 °C	50 °C	Positive Center	ITE (Commercial)	United Kingdom
GlobTek, Inc. WR95E1000CCP-F(R6B)	BS 1363	Wall Mount (Class II)	Fixed Blade	60950-1	90 V	264 V	12 W	2.1 mm	Barrel Plug	11 mm	5.5 mm	1 A	1.93 in	2.72 in	1.93 in	12 V	75 mW	Level VI	59 in	CB CE EAC LPS UKRSepro	0 °C	50 °C	Positive Center	ITE (Commercial)	United Kingdom
