MS130-10C-NS

Active

Masach Tech Ltd.

RF SHIELD 0.535X0.535" SNAP FIT

Search across all available documentation for this part.

Active

Masach Tech Ltd.

RF SHIELD 0.535X0.535" SNAP FIT

Technical Specifications

Parameters and characteristics commom to parts in this series

RF SHIELD 0.535X0.535" SNAP FIT

Part	Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Height - Overall [z]	Height - Overall	Ventilation	Height - Overall [z]	Length - Overall	Length - Overall	Width - Overall [x]	Width - Overall [x]
Masach Tech Ltd. MS130-10C-NS	Cover	Snap Fit	0.535 in	13.6 mm	0.118 in	3 mm	Non-Vented
Masach Tech Ltd. MS130-10F	Frame	Solder			0.197 in			5 mm	13 mm	0.512 "	13 mm	0.512 "
Masach Tech Ltd. MS130-10S-NS	Shield, 1-Piece	Solder			0.197 in		Non-Vented	5 mm	13 mm	0.512 "	13 mm	0.512 "
Masach Tech Ltd. MS130-10C	Cover	Snap Fit	0.535 in	13.6 mm	0.118 in	3 mm	Non-Vented
Masach Tech Ltd. MS130-10S	Shield, 1-Piece	Solder			0.197 in		Non-Vented	5 mm	13 mm	0.512 "	13 mm	0.512 "
Masach Tech Ltd. MS130-10F-NS	Frame	Solder			0.197 in			5 mm	13 mm	0.512 "	13 mm	0.512 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

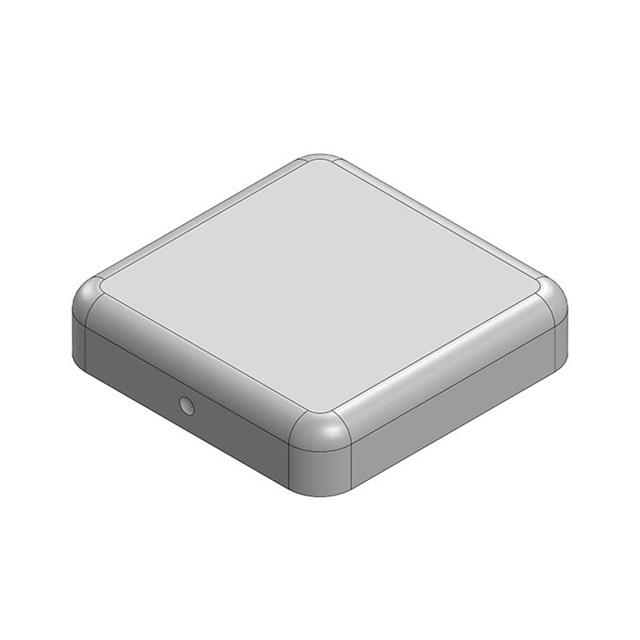

RF Shield Cover 0.535" (13.60mm) X 0.535" (13.60mm) Non-Vented Snap Fit
