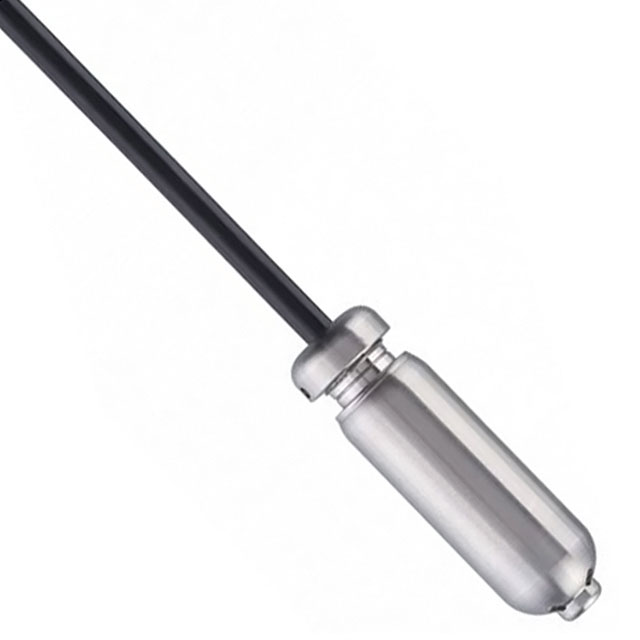

ILLS-G1000-D-015

Obsolete

Sensata Technologies

SENSOR LEVEL ANALOG

Search across all available documentation for this part.

Obsolete

Sensata Technologies

SENSOR LEVEL ANALOG

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ILLS-G1000-D-015	ILLS-G1000 Series

Material - Housing & Prism	316 Stainless Steel, 303 Stainless Steel	316 Stainless Steel, 303 Stainless Steel
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Output Configuration [Max]	4.5 V	4.5 - 20 mA
Output Configuration [Min]	0.5 V	0.5 - 4 mA
Output Type	Analog (Diaphragm)	Analog (Diaphragm)
Type	Liquid	Liquid
Voltage Rating [Max]	32 V	32 V
Voltage Rating [Min]	9 V	9 V

SENSOR LEVEL ANALOG

Part	Output Configuration [Max]	Output Configuration [Min]	Type	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Material - Housing & Prism	Voltage Rating [Max]	Voltage Rating [Min]
Sensata Technologies ILLS-G1000-5-015	20 mA	4 mA	Liquid	Analog (Diaphragm)	-20 C	60 °C	303 Stainless Steel, 316 Stainless Steel	32 V	9 V
Sensata Technologies ILLS-G1000-D-015	4.5 V	0.5 V	Liquid	Analog (Diaphragm)	-20 C	60 °C	303 Stainless Steel, 316 Stainless Steel	32 V	9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Liquid Level Sensor Analog (Diaphragm) 0.5 V ~ 4.5 V Output Cable Mount

Technical documentation and resources

No documents available
