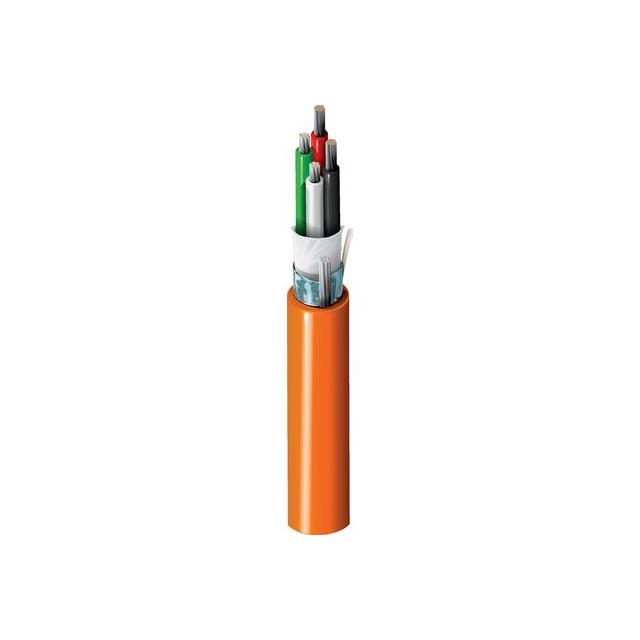

3125A 0035000

Active

Belden Inc.

MULTI-PAIR 4COND 16/22AWG 5000'

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 16/22AWG 5000'

Technical Specifications

Parameters and characteristics for this part

Specification	3125A 0035000

Cable Type	Multi-Pair
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26, 7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.368 in
Jacket (Insulation) Diameter [diameter]	9.35 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.039 in
Jacket (Insulation) Thickness	0.991 mm
Jacket Color	Orange
Number of Conductors	4
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG, 16 AWG

Part	Shield Material	Jacket Color	Number of Conductors	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Features	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Shield Type	Shield Coverage	Wire Gauge	Jacket (Insulation) Material	Conductor Insulation	Length	Length	Cable Type
Belden Inc. 3125A 0031000	Aluminum	Orange	4	300 V	7 26	30 AWG	Drain Wire	0.368 in	9.35 mm	0.039 in	0.991 mm	Copper Tinned	Foil	100 %	16 AWG 22 AWG	Poly-Vinyl Chloride (PVC)	Foam High Density Polyethylene (FHDPE)	1000 ft	304.8 m	Multi-Pair
Belden Inc. 3125A 0035000	Aluminum	Orange	4	300 V	7 26	30 AWG	Drain Wire	0.368 in	9.35 mm	0.039 in	0.991 mm	Copper Tinned	Foil	100 %	16 AWG 22 AWG	Poly-Vinyl Chloride (PVC)	Foam High Density Polyethylene (FHDPE)			Multi-Pair

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 (2 Pair) Conductor Multi-Pair Cable Orange 16 AWG, 22 AWG Foil 5000' (1524.0m)
