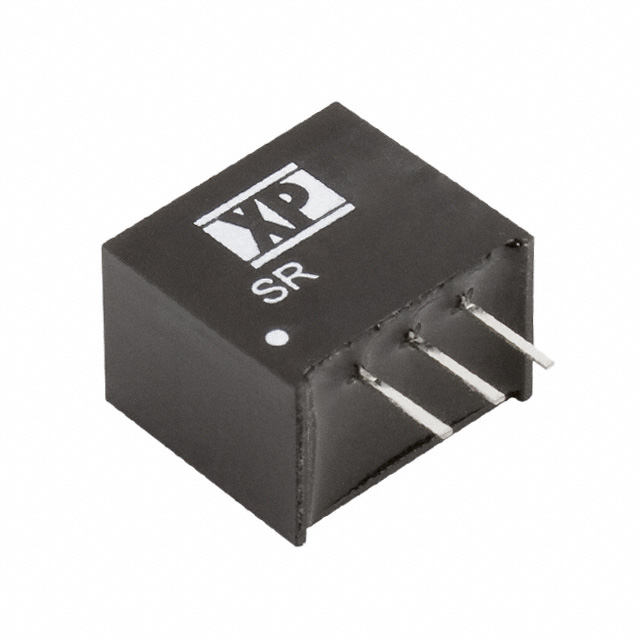

SR05S1V8

Active

XP Power

DC DC CONVERTER 1.8V 1W

Search across all available documentation for this part.

Active

XP Power

DC DC CONVERTER 1.8V 1W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SR05S1V8	SR05S1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	500 mA	500 mA
Efficiency	-	79 %
Features	SCP	SCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	3-SIP Module	3-SIP Module
Size / Dimension [x]	0.46 in	0.46 in
Size / Dimension [x]	11.7 mm	11.7 mm
Size / Dimension [y]	0.3 "	0.3 "
Size / Dimension [y]	7.5 mm	7.5 mm
Size / Dimension [z]	10.2 mm	10.2 mm
Size / Dimension [z]	0.4 "	0.4 "
Type	Linear Regulator Replacement	Linear Regulator Replacement
Voltage - Input (Max) [Max]	34 V	34 V
Voltage - Input (Min) [Min]	4.75 V	4.75 V
Voltage - Output 1	1.8 V	1.5 - 1.8 V

DC/DC CONVERTER, REGULATED, ITE, 1 OUTPUT, 750 MW, 1.5 V, 500 MA, SR SERIES

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Voltage - Output 1	Mounting Type	Voltage - Input (Min) [Min]	Features	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Applications	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
XP Power SR05S1V5	85 °C	-40 °C	3-SIP Module	Linear Regulator Replacement	1.5 V	Through Hole	4.75 V	SCP	500 mA	1	34 V	ITE (Commercial)	79 %	10.2 mm	0.46 in	0.3 "	0.4 "	11.7 mm	7.5 mm
XP Power SR05S1V8	85 °C	-40 °C	3-SIP Module	Linear Regulator Replacement	1.8 V	Through Hole	4.75 V	SCP	500 mA	1	34 V	ITE (Commercial)		10.2 mm	0.46 in	0.3 "	0.4 "	11.7 mm	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Regulator Replacement DC DC Converter 1 Output 1.8V 500mA 4.75V - 34V Input
