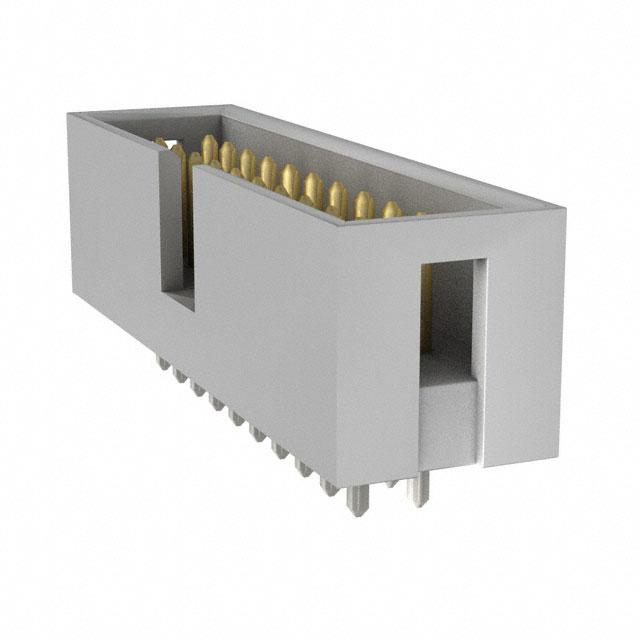

AWHW 20G-0202-T

Active

Assmann WSW Components

CONN HEADER VERT 20POS 2.54MM

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN HEADER VERT 20POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	AWHW 20G-0202-T

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Mating [x]	0.224 in
Contact Length - Mating [x]	5.7 mm
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Gray
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Insulation Color	Style	Contact Finish Thickness - Mating	Contact Type	Features	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Insulation Material	Contact Material	Contact Shape	Number of Positions Loaded	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Contact Finish - Post	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Number of Positions	Connector Type	Number of Rows	Fastening Type	Mounting Type	Material Flammability Rating
Assmann WSW Components AWHW 20G-0202-T	Gray	Board to Cable/Wire	Flash	Male Pin	Keying Slot	9 mm	0.354 in	-40 °C	105 ░C	0.1 in	2.54 mm	Gold	Polybutylene Terephthalate (PBT) Glass Filled	Brass	Square	All	Solder	2.54 mm	0.1 in	0.224 in	5.7 mm	Shrouded - 4 Wall	Tin	3 A	0.13 in	3.3 mm	20	Header	2	Push-Pull	Through Hole	UL94 V-0
