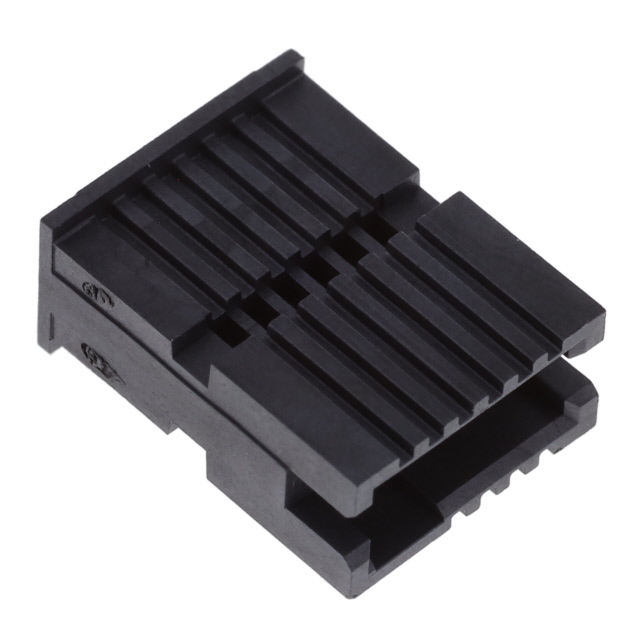

TSDF-06-D-S - TSDF-06-D-S

TSDF-06-D-S

Active
Samtec Inc.

CONN HSG 12POS 1.27MM TIGER EYE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSFSD Series Other Related Documents 03+1
TSDF-06-D-S - TSDF-06-D-S

TSDF-06-D-S

Active
Samtec Inc.

CONN HSG 12POS 1.27MM TIGER EYE

Deep-Dive with AI

DocumentsDatasheetSFSD Series Other Related Documents 03+1

Technical Specifications

Parameters and characteristics for this part

SpecificationTSDF-06-D-S
ColorBlack
Contact TerminationCrimp
Contact TypeMale Pin
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions12
Number of Rows2
Pitch [x]0.05 in
Pitch [x]1.27 mm
Row Spacing1.27 mm
Row Spacing0.05 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 3.13
50$ 2.56
100$ 2.17
500$ 2.06
NewarkEach 1$ 3.17
10$ 3.03
100$ 2.54
500$ 2.15
1000$ 1.82
2500$ 1.68
5000$ 1.64

Description

General part information

TSDF-06 Series

12 Rectangular Connectors - Housings Black 0.050" (1.27mm)
