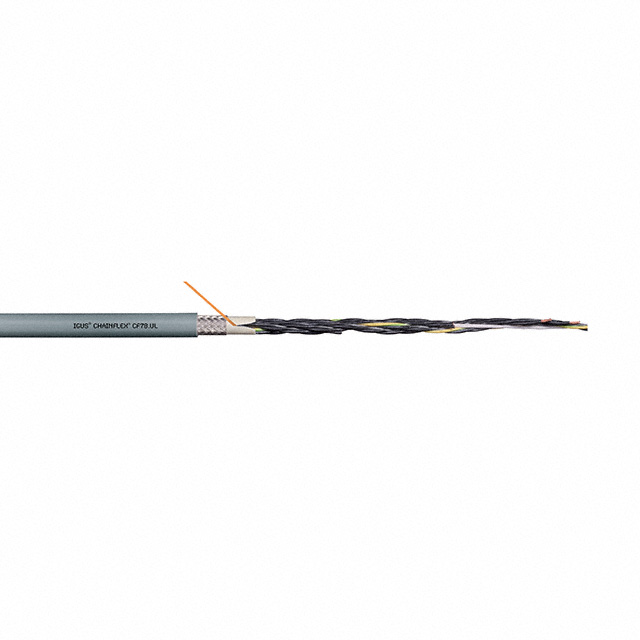

CF78-UL-15-04
ActiveIgus
PUR4C/16AWG O/S CTRL 1000V FEET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CF78-UL-15-04
ActiveIgus
PUR4C/16AWG O/S CTRL 1000V FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CF78-UL-15-04 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Thermoplastic Elastomer (TPE) |
| Conductor Material | Copper, Bare |
| Features | Flame Retardant, Oil Resistant, Abrasion Resistant |
| Jacket (Insulation) Diameter [diameter] | 0.394 in |
| Jacket (Insulation) Diameter [diameter] | 10.01 mm |
| Jacket (Insulation) Material | Polyurethane (PU) |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Ratings | UL Style 21223 |
| Shield Coverage | 80 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Spool Size | 1000 ft |
| Spool Size | 304.8 m |
| Voltage | 1000 V |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 7.06 | |
| 3 | $ 6.51 | |||
| 5 | $ 6.28 | |||
| 7 | $ 6.15 | |||
| 10 | $ 5.98 | |||
| 25 | $ 5.62 | |||
| 50 | $ 5.33 | |||
| 100 | $ 5.10 | |||
Description
General part information
CF78-UL Series
4 Conductor Multi-Conductor Cable Gray 16 AWG Braid Enter Number of Feet in Order Quantity
