C4AEHBU4330A1WJ

Active

KEMET

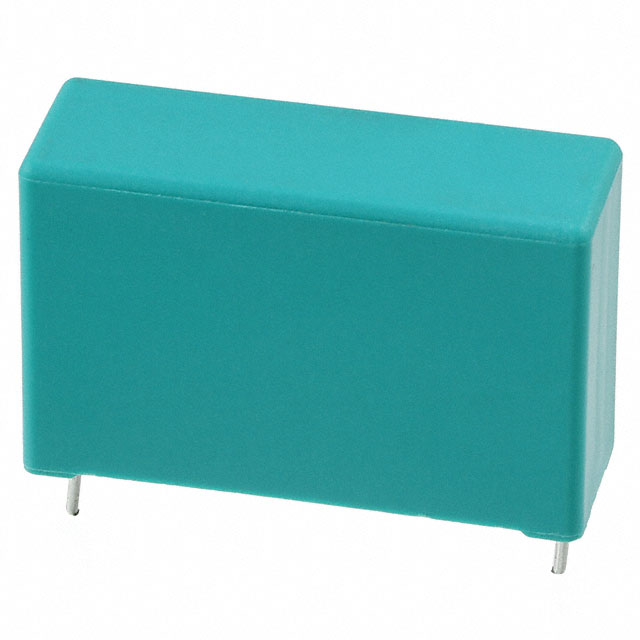

CAP FILM 3.3UF 5% 600VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Film Capacitors Catalog

C4AEHBU4330A1WJ

Active

KEMET

CAP FILM 3.3UF 5% 600VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet Power Film Capacitors Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C4AEHBU4330A1WJ

Applications	Switching, High Frequency, DC Filtering, DC Link
Capacitance	3.3 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	17 mOhm
Height - Seated (Max) [Max] [z]	0.795 "
Height - Seated (Max) [Max] [z]	20.2 mm
Lead Spacing	27.5 mm
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Termination	PC Pins
Tolerance	5 %
Voltage Rating - DC	600 V

C4AEHB Series

Part	Package / Case	Tolerance	Mounting Type	Dielectric Material	Applications	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Voltage Rating - DC	Capacitance	Lead Spacing	Lead Spacing	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]
KEMET C4AEHBW5400A3LJ	Radial - 4 Leads	5 %	Through Hole	Metallized Polypropylene (PP)	DC Filtering DC Link High Frequency Switching	85 °C	-40 °C	2.8 mOhms	1.772 in	45 mm	PC Pins	600 V	40 µF	37.5 mm	1.476 in	42 mm	1.181 in	1.654 in	30 mm
KEMET C4AEHBW5300A3JJ	Radial - 4 Leads	5 %	Through Hole	Metallized Polypropylene (PP)	DC Filtering DC Link High Frequency Switching	85 °C	-40 °C	3.6 mOhms	1.465 in	37.2 mm	PC Pins	600 V	30 µF	37.5 mm	1.476 in	42.5 mm	1.102 in	1.673 in	28 mm
KEMET C4AEHBU5100A11J	Radial	5 %	Through Hole	Metallized Polypropylene (PP)	DC Filtering DC Link High Frequency Switching	85 °C	-40 °C	6.8 mOhms	1.15 in	29.2 mm	PC Pins	600 V	10 µF	27.5 mm	1.083 in
KEMET C4AEHBW5200A3FJ	Radial - 4 Leads	5 %	Through Hole	Metallized Polypropylene (PP)	DC Filtering DC Link High Frequency Switching	85 °C	-40 °C	5.3 mOhms	1.583 in	40.2 mm	PC Pins	600 V	20 µF	37.5 mm	1.476 in	41.5 mm	0.787 in	1.634 "	20 mm
KEMET C4AEHBU4330A1WJ	Radial	5 %	Through Hole	Metallized Polypropylene (PP)	DC Filtering DC Link High Frequency Switching	85 °C	-40 °C	17 mOhm	0.795 "	20.2 mm	PC Pins	600 V	3.3 µF	27.5 mm	1.083 in
KEMET C4AEHBU5150A12J	Radial	5 %	Through Hole	Metallized Polypropylene (PP)	DC Filtering DC Link High Frequency Switching	85 °C	-40 °C	5.3 mOhms	1.465 in	37.2 mm	PC Pins	600 V	15 µF	27.5 mm	1.083 in	31.5 mm	0.866 in	1.24 in	22 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.66
		10	$ 4.01
		256	$ 2.80
		1024	$ 2.42

Description

General part information

C4AEHB Series

3.3 µF Film Capacitor 600V Polypropylene (PP), Metallized Radial
