1410187-1

Active

TE Connectivity AMP Connectors

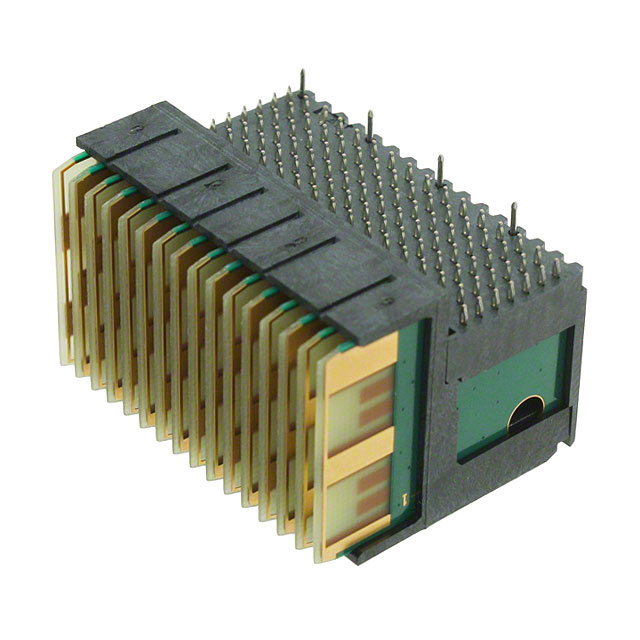

CONN PLUG VITA46 112POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG VITA46 112POS EDGE MNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1410187-1	1410187 Series

Color	Black	Black
Connector Style	VITA 46, Center	VITA 46, Center
Connector Type	Plug, Male Blades	Plug, Male Blades
Connector Usage	Daughtercard	Daughtercard
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 - 1.27 Ám
Contact Finish Thickness	30 Áin	30 - 50 Áin
Contact Layout, Typical [custom]	32	32
Contact Layout, Typical [custom]	40	40
Contact Layout, Typical [custom]	8	8
Features	Board Guide	Board Guide
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge	Through Hole, Right Angle, Board Edge
Number of Columns	16	16
Number of Positions	112	112
Number of Positions Loaded	All	All
Number of Rows	7	7
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.071 in	0.071 in
Pitch [x]	1.8 mm	1.8 mm
Termination	Press-Fit	Press-Fit
Voltage Rating	50 V	50 V

CONN PLUG VITA46 112POS EDGE MNT

Part	Connector Usage	Number of Columns	Termination	Features	Number of Rows	Voltage Rating	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Type	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Positions Loaded	Connector Style	Color	Pitch [x]	Pitch [x]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness
TE Connectivity AMP Connectors 1410187-1	Daughtercard	16	Press-Fit	Board Guide	7	50 V	32	40	8	Plug, Male Blades	Board Edge, Right Angle, Through Hole	112	105 ░C	-55 °C	UL94 V-0	All	Center, VITA 46	Black	0.071 in	1.8 mm	Gold	0.76 Ám	30 Áin
TE Connectivity AMP Connectors 1410187-4	Daughtercard	16	Press-Fit	Board Guide	7		32	40	8	Plug, Male Blades	Board Edge, Right Angle, Through Hole	112	105 ░C	-55 °C	UL94 V-0	All	Center, VITA 46	Black	0.071 in	1.8 mm	Gold	1.27 µm	50 µin
