1410187-1

Active

TE Connectivity Raychem Cable Protection

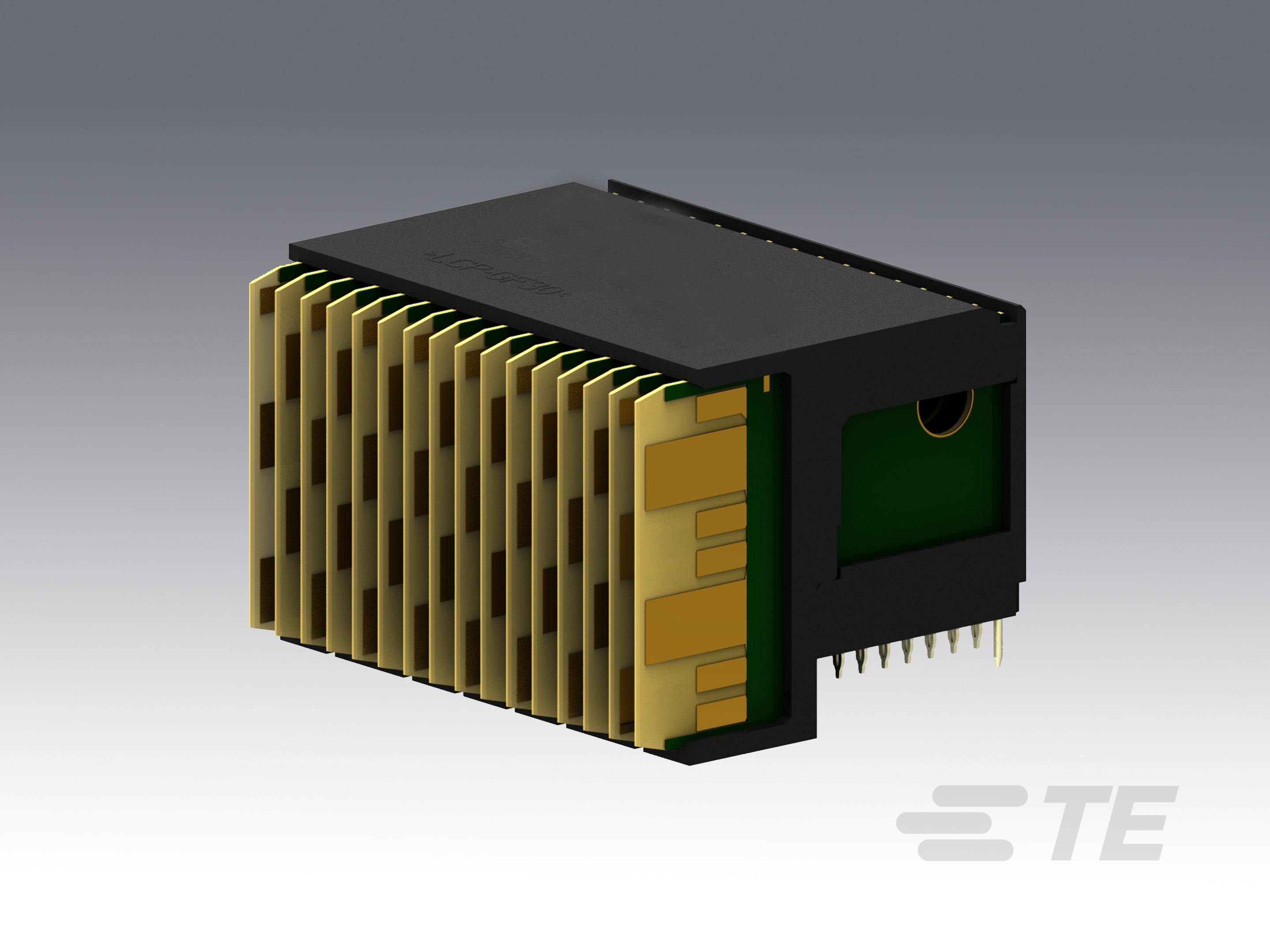

CONN PLUG VITA46 112POS EDGE MNT

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG VITA46 112POS EDGE MNT

Technical Specifications

Parameters and characteristics for this part

Specification	1410187-1

Color	Black
Connector Style	VITA 46, Center
Connector Type	Plug, Male Blades
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical [custom]	32
Contact Layout, Typical [custom]	40
Contact Layout, Typical [custom]	8
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Columns	16
Number of Positions	112
Number of Positions Loaded	All
Number of Rows	7
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.071 in
Pitch [x]	1.8 mm
Termination	Press-Fit
Voltage Rating	50 V

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Number of Columns	Material Flammability Rating	Connector Usage	Number of Positions Loaded	Number of Rows	Termination	Number of Positions	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Color	Voltage Rating
TE Connectivity Raychem Cable Protection 1410187-4	50 µin	1.27 µm	0.071 in	1.8 mm	Plug Male Blades	Board Edge Right Angle Through Hole	16	UL94 V-0	Daughtercard	All	7	Press-Fit	112	32	40	8	Center VITA 46	Board Guide	105 ░C	-55 °C	Gold	Black
TE Connectivity Raychem Cable Protection 1410187-1	30 Áin	0.76 Ám	0.071 in	1.8 mm	Plug Male Blades	Board Edge Right Angle Through Hole	16	UL94 V-0	Daughtercard	All	7	Press-Fit	112	32	40	8	Center VITA 46	Board Guide	105 ░C	-55 °C	Gold	Black	50 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

112 Connector Plug, Male Blades Board Edge, Through Hole, Right Angle Black VITA 46, Center
