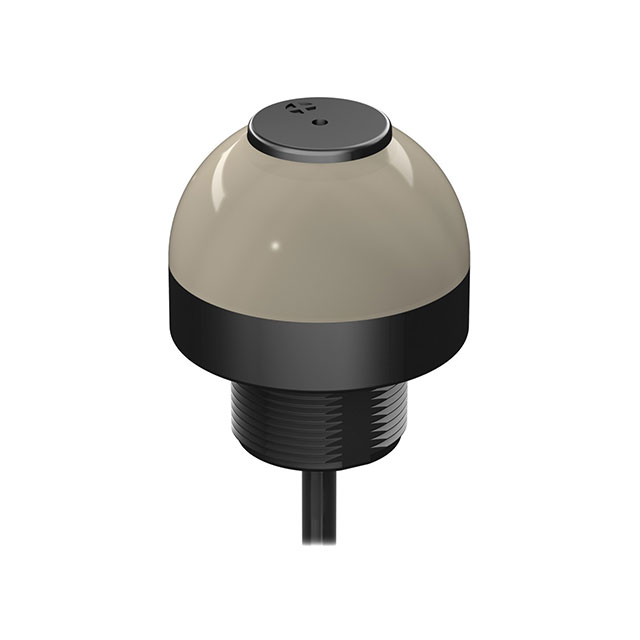

Specification	K50LGRA1YP

Function - Audible	Multiple
Function - Lighting	Steady
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Lamp Type	LED
Light Color	Red, Green, Yellow
Number of Stacks	3
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	18 VAC

K50LGR Series

...

Part	Number of Stacks	Light Color	Function - Audible	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Ingress Protection Description	Ingress Protection IP Rating	Function - Lighting	Termination Style	Type	Lamp Type	Operating Temperature (Max)	Operating Temperature (Min)	Features
BANNER ENGINEERING K50LGRA1YNQ	3	Green Red Yellow	Multiple	30 VDC	18 VAC	Dust Protected	IP50	Steady	Connector	Complete Unit	LED	50 °C	-20 °C
BANNER ENGINEERING K50LGRB6PQP	3	Blue Green Red		30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Cable with Connector	Complete Unit	LED	50 °C	-20 °C
BANNER ENGINEERING K50LGRALSYPQ	1 3	Green Red Yellow	Multiple	30 VDC	12 VDC	Dust Tight Waterproof	IP67	Steady	Connector	Beacon Complete Unit	LED	50 °C	-20 °C	Alarm
BANNER ENGINEERING K50LGRXPQP	2	Green Red		30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Cable with Connector	Complete Unit	LED	50 °C	-40 °C
BANNER ENGINEERING K50LGRXP	2	Green Red	Multiple	30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Wire Leads	Complete Unit	LED	50 °C	-40 °C
BANNER ENGINEERING K50LGRXN	2	Green Red	Multiple	30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Cable with Connector	Complete Unit	LED	50 °C	-40 °C
BANNER ENGINEERING K50LGRALSXPQ	2	Green Red	Multiple	30 VDC	12 VDC	Dust Tight Waterproof	IP67	Steady	Connector	Complete Unit	LED	50 °C	-20 °C
BANNER ENGINEERING K50LGRY2N	3	Green Red Yellow	Multiple	30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Wire Leads	Complete Unit	LED	50 °C	-40 °C
BANNER ENGINEERING K50LGRY6PQ	1 3	Green Red Yellow	Multiple	30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Connector	Beacon Complete Unit	LED	50 °C	-20 °C
BANNER ENGINEERING K50LGRXNQ	2	Green Red		30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Connector	Complete Unit	LED	50 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

K50LGRA1YP | Datasheet
