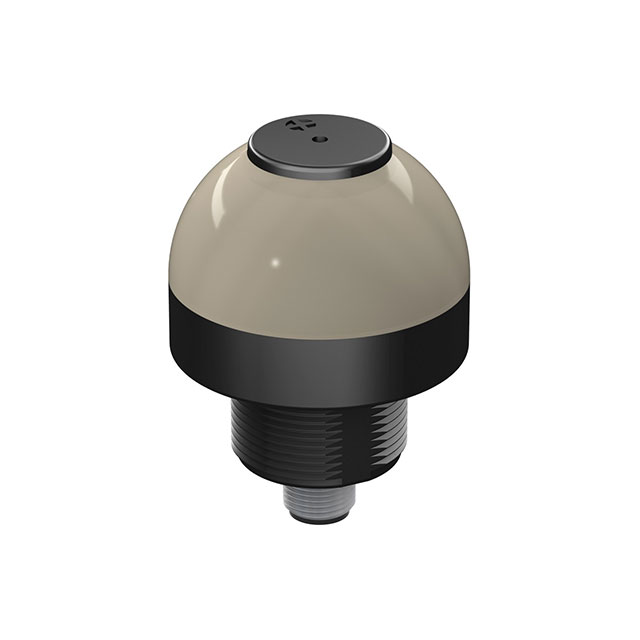

K50LGRA1YNQ

Active

BANNER ENGINEERING

AUDIBLE INDICATOR, EZ-LIGHT, CONTINUOUS, 75DB, 30VDC, 40MA, IP50, 50MM EXT. DEPTH

K50LGRA1YNQ

Active

BANNER ENGINEERING

AUDIBLE INDICATOR, EZ-LIGHT, CONTINUOUS, 75DB, 30VDC, 40MA, IP50, 50MM EXT. DEPTH

Description Specifications Series Pricing CAD Documents

Description

General part information

K50LGR Series

Stack Light Complete Unit Green, Red, Yellow LED Connector

Technical Specifications

Parameters and characteristics for this part

Specification	K50LGRA1YNQ

Function - Audible	Multiple
Function - Lighting	Steady
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Lamp Type	LED
Light Color	Red, Green, Yellow
Number of Stacks	3
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Termination Style	Connector
Type	Complete Unit
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	18 VAC

K50LGR Series

...

Part	Number of Stacks	Light Color	Function - Audible	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Ingress Protection Description	Ingress Protection IP Rating	Function - Lighting	Termination Style	Type	Lamp Type	Operating Temperature (Max)	Operating Temperature (Min)	Features
BANNER ENGINEERING K50LGRA1YNQ	3	Green Red Yellow	Multiple	30 VDC	18 VAC	Dust Protected	IP50	Steady	Connector	Complete Unit	LED	50 °C	-20 °C
BANNER ENGINEERING K50LGRB6PQP	3	Blue Green Red		30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Cable with Connector	Complete Unit	LED	50 °C	-20 °C
BANNER ENGINEERING K50LGRALSYPQ	1 3	Green Red Yellow	Multiple	30 VDC	12 VDC	Dust Tight Waterproof	IP67	Steady	Connector	Beacon Complete Unit	LED	50 °C	-20 °C	Alarm
BANNER ENGINEERING K50LGRXPQP	2	Green Red		30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Cable with Connector	Complete Unit	LED	50 °C	-40 °C
BANNER ENGINEERING K50LGRXP	2	Green Red	Multiple	30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Wire Leads	Complete Unit	LED	50 °C	-40 °C
BANNER ENGINEERING K50LGRXN	2	Green Red	Multiple	30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Cable with Connector	Complete Unit	LED	50 °C	-40 °C
BANNER ENGINEERING K50LGRALSXPQ	2	Green Red	Multiple	30 VDC	12 VDC	Dust Tight Waterproof	IP67	Steady	Connector	Complete Unit	LED	50 °C	-20 °C
BANNER ENGINEERING K50LGRY2N	3	Green Red Yellow	Multiple	30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Wire Leads	Complete Unit	LED	50 °C	-40 °C
BANNER ENGINEERING K50LGRY6PQ	1 3	Green Red Yellow	Multiple	30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Connector	Beacon Complete Unit	LED	50 °C	-20 °C
BANNER ENGINEERING K50LGRXNQ	2	Green Red		30 VDC	18 VAC	Dust Tight Water Resistant Waterproof	IP67 IP69K	Steady	Connector	Complete Unit	LED	50 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

K50LGRA1YNQ | Datasheet

Drawing EN

Product Change Notice EN
