012528PW100

Active

Essentra Components

PAN PHILLIPS SCREW 1/4-28 THREAD

Search across all available documentation for this part.

Active

Essentra Components

PAN PHILLIPS SCREW 1/4-28 THREAD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

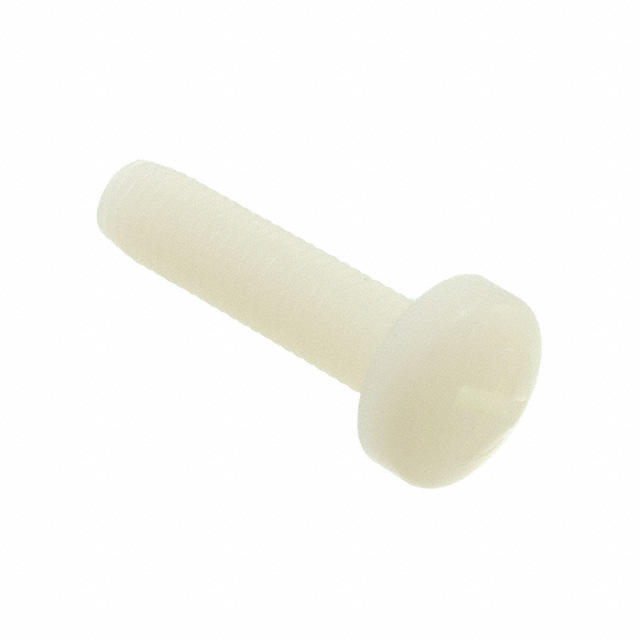

1/4"-28 Pan Head Machine Screw Phillips Drive Nylon

Technical documentation and resources

Parameters and characteristics commom to parts in this series

PAN PHILLIPS SCREW 1/4-28 THREAD

Part	Length - Overall [x]	Length - Overall [x]	Material	Head Height	Head Height	Length - Below Head	Length - Below Head	Length - Below Head	Thread Size	Drive Type	Screw Head Type	Type	Length - Below Head [custom]	Length - Below Head [custom]	Head Diameter [diameter]	Head Diameter [diameter]	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head
Essentra Components 012528PW075	0.948 in	24.08 mm	Nylon	0.198 "	5.03 mm	0.75 "	19.05 mm	0.75 "	1/4"-28	Phillips	Pan Head	Machine Screw
Essentra Components 012528PW100	1.198 in	30.43 mm	Nylon	0.198 "	5.03 mm		25.4 mm	1 in	1/4"-28	Phillips	Pan Head	Machine Screw
Essentra Components 012528PW043			Nylon	0.198 "	5.03 mm				1/4"-28	Phillips	Pan Head	Machine Screw	0.438 in	11.11 mm	12.26 mm	0.483 in
Essentra Components 012528PW062	0.823 in	20.9 mm	Nylon	0.198 "	5.03 mm	0.625 in	15.88 mm	0.625 in	1/4"-28	Phillips	Pan Head	Machine Screw			12.26 mm	0.483 in
Essentra Components 012528PW018			Nylon	0.198 "	5.03 mm				1/4"-28	Phillips	Pan Head	Machine Screw			12.26 mm	0.483 in	4.76 mm	0.188 in
Essentra Components 012528PW050	0.698 in	17.73 mm	Nylon	0.198 "	5.03 mm		12.7 mm	0.5 in	1/4"-28	Phillips	Pan Head	Machine Screw							1/2
