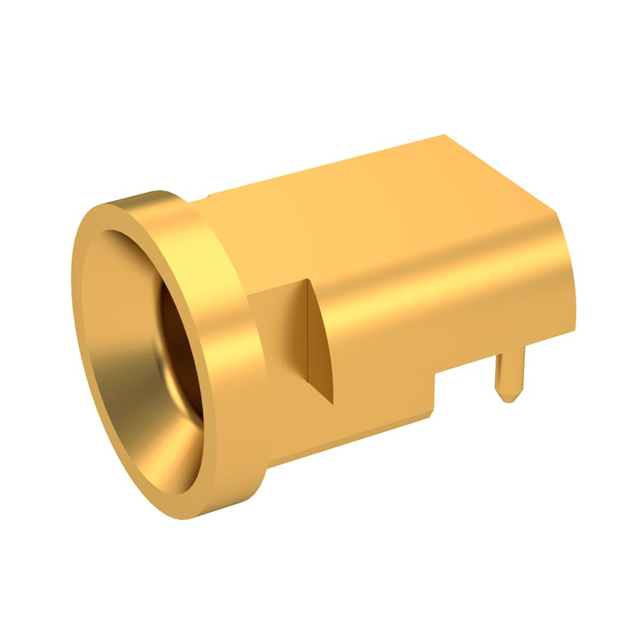

Specification	R222680710

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Receptacle, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Catcher's Mitt
Frequency - Max	40 Gbps
Housing Color	Gold
Impedance	50 Ohm
Mounting Type	Board Edge, Through Hole, Right Angle, Surface Mount, Cutout
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	335 V

R22268 Series

Part	Frequency - Max	Connector Style	Connector Type	Contact Termination	Mounting Type	Features	Housing Color	Shield Termination	Fastening Type	Number of Ports	Center Contact Material	Impedance	Body Material	Voltage Rating	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Body Finish	Dielectric Material
Radiall USA, Inc. R222680700	12 Gbps	SMP	Male Pin Receptacle	Solder	Right Angle Through Hole	Smooth Bore	Gold Silver	Solder	Snap-On	1	Beryllium Copper	50 Ohm	Brass Stainless Steel	335 V	1000 cycles	-65 °C	165 °C	Gold	Gold
Radiall USA, Inc. R222680000	12 Gbps	SMP	Male Pin Receptacle	Solder	Right Angle Through Hole	Full Detent	Gold Silver	Solder	Snap-On	1	Beryllium Copper	50 Ohm	Brass Stainless Steel	335 V	100 cycles	-65 °C	165 °C	Gold	Gold
Radiall USA, Inc. R222680710	40 Gbps	SMP	Male Pin Receptacle	Solder	Board Edge Cutout Right Angle Surface Mount Through Hole	Catcher's Mitt	Gold	Solder	Snap-On	1	Beryllium Copper	50 Ohm	Stainless Steel	335 V		-65 °C	165 °C	Gold	Gold	Polytetrafluoroethylene (PTFE)
Radiall USA, Inc. R222680000W	12 Gbps	SMP	Male Pin Receptacle	Solder	Right Angle Through Hole	Full Detent	Gold Silver	Solder	Snap-On	1	Beryllium Copper	50 Ohm	Brass Stainless Steel	335 V	100 cycles	-65 °C	165 °C	Gold	Gold
