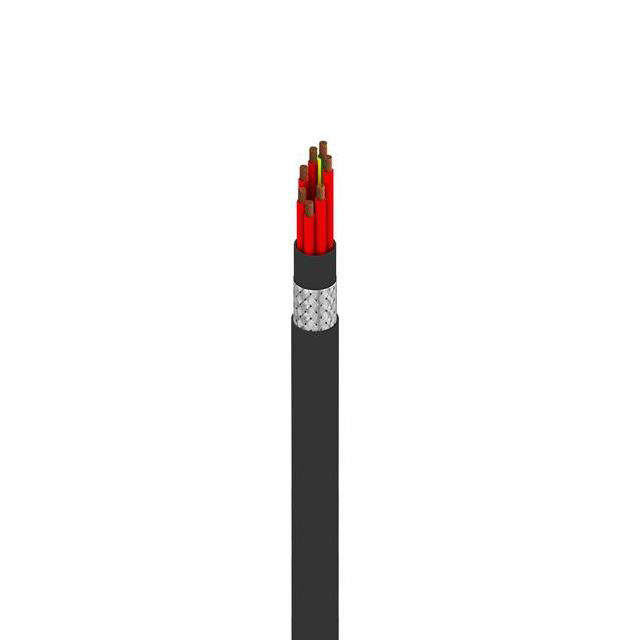

77807WS 0101000

Active

Belden Inc.

CABLE 7COND 18AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 7COND 18AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	77807WS 0101000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	105
Conductor Strand [custom]	38 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	13.51 mm
Jacket (Insulation) Diameter [diameter]	0.532 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Length	1000 ft
Length	304.8 m
Number of Conductors	7
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-5 °C
Ratings	UL Style 2587
Shield Coverage	85 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	18 AWG

Part	Conductor Material	Jacket Color	Shield Material	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Wire Gauge	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shield Coverage
Belden Inc. 77807WS 0101000	Copper Bare	Black	Copper Tinned	Braid	1.143 mm	0.045 in	1000 ft	304.8 m	18 AWG	UL Style 2587	13.51 mm	0.532 in	Multi-Conductor	Poly-Vinyl Chloride (PVC)	105	38 AWG	7	Poly-Vinyl Chloride (PVC)	90 °C	-5 °C	Oil Resistant	85 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 7.35

General part information

7 Conductor Multi-Conductor Cable Black 18 AWG Braid 1000.0' (304.8m)
