823440A20060MB

Active

Crouzet

GEARMOTOR 60 RPM 115V

Search across all available documentation for this part.

Active

Crouzet

GEARMOTOR 60 RPM 115V

Technical Specifications

Parameters and characteristics commom to parts in this series

GEARMOTOR 60 RPM 115V

Part	Power - Rated	Mounting Hole Spacing	Mounting Hole Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Termination Style	Type	Length - Shaft and Bearing	Length - Shaft and Bearing	Size / Dimension [diameter]	Size / Dimension [diameter]	RPM	Weight	Weight	Gear Reduction Ratio	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]
Crouzet 823440A20060MB	3 W	47.6 mm	1.874 in	-5 °C	60 °C	115 VAC	Wire Leads	AC Motor	0.52 in	13.2 mm	1.858 in	47.2 mm	60 RPM	210.01 g	0.463 lb	12	0.157 in	4 mm
Crouzet 82344934	3 W	47.6 mm	1.874 in	-5 °C	60 °C	115 VAC	Wire Leads	AC Motor	0.52 in	13.2 mm	1.858 in	47.2 mm	12 RPM	210.01 g	0.463 lb	60	0.157 in	4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

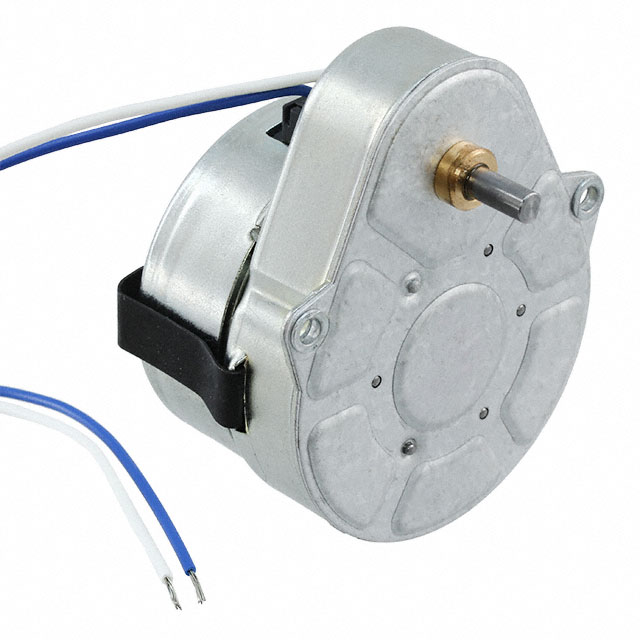

Synchronous AC Motor Gearmotor 60 RPM 3W 115VAC

Technical documentation and resources
