TBS606
ActiveTaiwan Semiconductor Corporation
6A, 600V, STANDARD BRIDGE RECTIFIER
Deep-Dive with AI
Search across all available documentation for this part.
TBS606
ActiveTaiwan Semiconductor Corporation
6A, 600V, STANDARD BRIDGE RECTIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TBS606 |
|---|---|
| Current - Average Rectified (Io) | 6 A |
| Current - Reverse Leakage @ Vr | 2 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

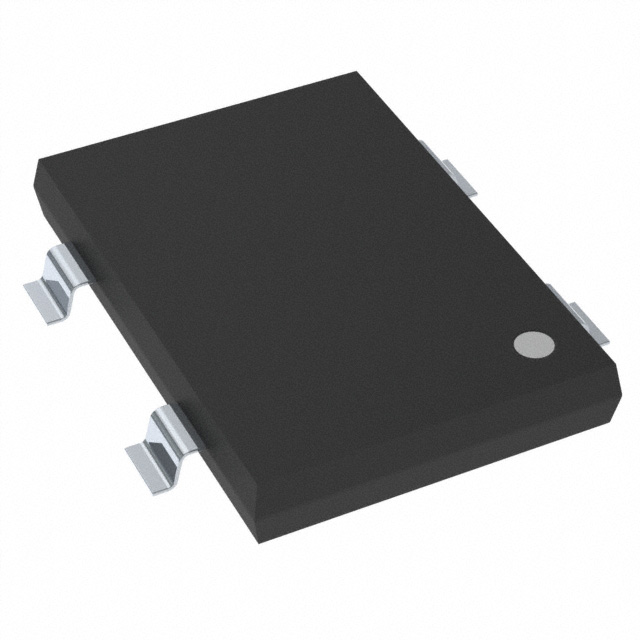

| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | TBS |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
| Voltage - Peak Reverse (Max) [Max] | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.78 | |
| 10 | $ 0.67 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.39 | |||
| Digi-Reel® | 1 | $ 0.78 | ||
| 10 | $ 0.67 | |||
| 100 | $ 0.47 | |||
| 500 | $ 0.39 | |||
| Tape & Reel (TR) | 1800 | $ 0.33 | ||
| 3600 | $ 0.30 | |||
| 5400 | $ 0.28 | |||
| 9000 | $ 0.26 | |||
Description
General part information
TBS606 Series
Bridge Rectifier Single Phase Standard 600 V Surface Mount TBS
